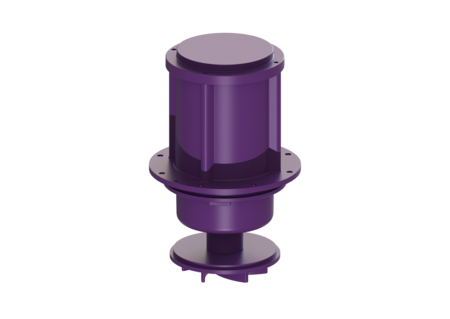

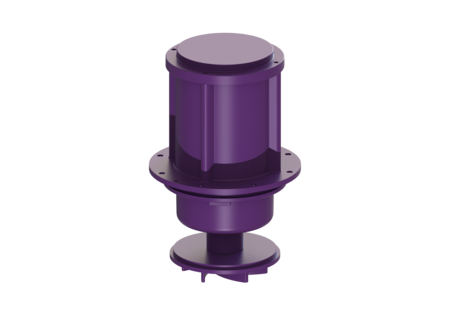

Pump drive SPF 5500 E
400 V, S3, 5 m cable
Pump drive with multi-vane impeller for faecal wastewater
| Item no. | 680727 |
|---|---|
| GTIN | 4026092095508 |
| Price group | 90 |
Pump drive SPF 5500 E 400 V, S3, 5 m cable
Pump drive with multi-vane impeller for faecal wastewater General characteristics ATEX: no Dimensions Net weight: 38 kg Gross weight: 40 kg Packaging dimension: length: 585 mm Packaging dimension: width: 350 mm Packaging dimension: height: 380 mm Pumping device Pump: SPF 5500 E Connection type: Direct connection Rated current: 9,1 A Protection class: I Protection class (pump): IP 68 (3m/48h) Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 27 m Speed: 2840 U/min Power P1: 5,6 kW Power P2: 4,7 kW Type of pump connection cable: H07RN-F 7G 1.5 mm² Length of mains cable for pump: 5 m Control Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Rated current: 9,1 A
