Pumping station Aquapump XXL AX

Tronic, STZ 11000-S1

8743038
8743038
PDF product data sheet

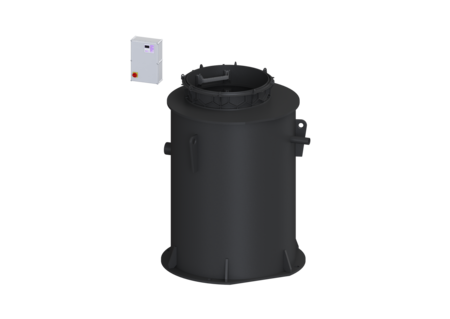

KESSEL Pumping station Aquapump XXL AX, Tronic, wastewater with sewage, height 2440 mm, pump control by Control unit, with a submersible STZ 11000 pump

Item no. 8743038
GTIN 4026092078068
Price group 60

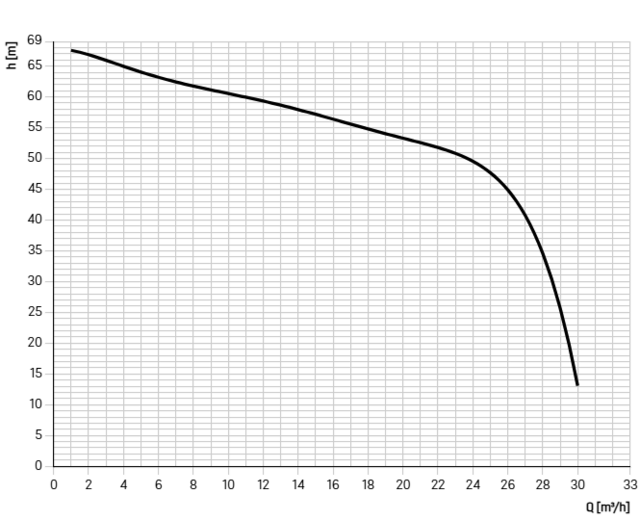

Pumping station Aquapump XXL AX Tronic, STZ 11000-S1
Variant Note on installation depth: in combination with a chamber module Type of system: Single unit Shut-off valve: Shut-off valve made of cast iron Passage seal for conduit pipe (DN): 100 Access steps: yes Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Chamber system: Twin walled re-enforced pipe chamber General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Tronic ATEX: yes Dimensions Net weight: 671,7 kg Gross weight: 739,7 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1880 mm Width: 1880 mm Height: 2440 mm Packaging dimension: length: 3400 mm Packaging dimension: width: 1800 mm Packaging dimension: height: 1760 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Distance from centre of outlet pipe to tank bottom: 1735 mm Distance pipe bottom inlet to tank bottom: 1320 mm Distance from centre of inlet pipe to tank bottom: 1400 mm Distance from inlet pipe invert to top of tank: 1090 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1600 mm Clear width of entry (LW): 1000 mm Pumping volume: 820 l Pumping device Pump: STZ 11000 Number of pumps: 1 Weight, pump: 107 kg Connection type: Direct connection Rated current: 18,8 A Protection class: I Insulation class: H Cos phi - power factor: 0,89 Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 30,6 m³/h Max. pumping height: 68 m Speed: 2900 U/min Power P1: 11 kW Power P2: 9,5 kW Operating mode: S1 Type of pump connection cable: H07RN8-F PLU 10G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Control Control unit: Comfort Plus SD Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
