Grease separator EasyClean free

UnderSink, NS 0,7

93070.00US
93070.00US
PDF product data sheet

KESSEL Grease separator EasyClean free, disposal, nominal size 0,7, temperature controlled enclosure unterhalb eines Spülbeckens, keine metallischen Bauteile im Abscheider, total volume 33 l, Integrated sludge trap

  • Swivel connection
  • no internal metallic components in the separator
Item no. 93070.00US
GTIN 4026092096857
Price group 60

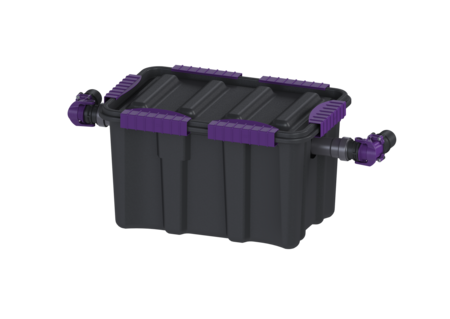

    Grease separator EasyClean free UnderSink, NS 0,7
    This separator for greasy waste water is suitable for freestanding installation in frost-protected rooms below a sink. Free of any metal components, the collecting tank is made of durable plastic (PP) equipped with an integrated sludge trap. An odor-tight lid with a wrap-around seal and closure clip allows easy access during manual emptying and cleaning. The separator also has quick-release pipe connections for easy removal, and an inspection window for on-site installation is available as an option for visually checking the thickness of the grease layer. Variant Seal: yes Sludge bucket: no Nominal size (NS): 0,7 Refill inlet in accordance with DIN 1988: no Type of disposal: manual Sampling device: no General characteristics Material: PP Installation situation: free-standing installation Delivery state: Modular set for assembly on site Dimensions Net weight: 5,9 kg Gross weight: 5,9 kg Operating weight: 38 kg Empty weight: 5 kg Set-up area, length: 891 mm Set-up area, width: 420 mm Set-up area, height: 356 mm Required access area, length: 624 mm Packaging dimension: length: 624 mm Packaging dimension: width: 396 mm Packaging dimension: height: 420 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 225 mm Distance pipe bottom inlet to tank bottom: 235 mm Outlet nominal size (OD): 50 mm Outlet nominal size (DN): 50 mm Inlet nominal size (OD): 50 mm Inlet nominal size (DN): 50 mm Coverage features Locking: Clip closure Wastewater contents Separator contents: 21 l Max. grease layer thickness: 57 mm Total volume: 33 l Contents of sludge trap: 12 l Storage quantity of grease: 8 l
      Title Item no.
      Title Item no.
      Title Item no.
    913110 Inspection window UnderSink 913110 Show
      Title Item no.
    Manuals
    CAD Data
    Declaration of Performance
    • Material (material): PP
    • Installation situation (einbausituation): free-standing installation
    • Nominal size (NS) (nenngroesse): 0,7
    • Sludge bucket (schauglas): no
