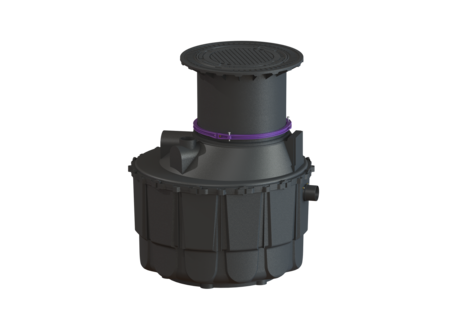

EasyOil oil/fuel separator

ground, LW 1000, NS 1.5, Class II, D

99601.041D
PDF product data sheet

KESSEL EasyOil oil/fuel separator, nominal size 1,5, load class D 400, cover width 680 mm, cover length 680 mm, underground installation, sludge trap capacity 360 l, volume 3541,2 dm³, total volume 580 l

  • Permanent leak tightness up to ground level
  • Resistant to and suitable for up to 100 % share of E 10 and biodiesel (FAME)
  • Optionally with backwater valve according to DIN 13564
Item no. 99601.041D
GTIN 4026092030998
Price group 60

    EasyOil oil/fuel separator ground, LW 1000, NS 1.5, Class II, D
    The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Note: Approval must be obtained from the authorities responsible before ordering. Variant Nominal size (NS): 1,5 Type of disposal: manual with suction hose Coalescence insert: no Load-bearing capacity (DIN 19901): E4 General characteristics Material: PE Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Separator class: II Range of applications for light liquids: from 0.85 to 0.95 g/cm3 Dimensions Net weight: 198 kg Gross weight: 216 kg Excess depth: 70 mm Installation depth: 570 - 995 mm Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees Required access area, length: 1425 mm Required access area, width: 1300 mm Packaging dimension: length: 2270 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 1200 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 583 mm Distance pipe bottom inlet to tank bottom: 630 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of tank (LW): 1000 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Width of cover: 680 mm Height of cover: 50 mm Length of cover: 680 mm Locking: unlocked Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Total volume: 580 l Contents of sludge trap: 360 l Storage quantity of light liquid: 110 l Control Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
    9151010D Sampling chamber LW 1000, DN 100, Class D 9151010D Show
    915402 Extension section System 400, H: 600 mm, can be shortened 915402 Show
    915880D Sampling chamber LW 400, DN 100/150, class D 915880D Show
    915881D Sampling chamber d: 450 mm, DN 100, Class D 915881D Show
    917460 Extension section d: 600 mm, Extension 500 mm 917460 Show
      Title Item no.
    680276 Clamping ring for upper sections d: 600 mm 680276 Show
    680277 Seal for upper section LW 600 680277 Show
    680321 Cover plate Class B, grey iron, unlocked 680321 Show
    680324 Upper section d: 630 mm, surface water resistant 680324 Show
    680333 Outlet structure for oil/fuel separator NS 1.5 680333 Show
    680334 Adapter Plate with socket 680334 Show
    680335 Seal for outlet sockets 680335 Show
    • Material (material): PE
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 1,5
    • Load class (belastungsklasse): D 400 (EN 124)
    • Installation depth (einbautiefe): 570  mm
    • Total volume (gesamtvolumen): 580  l
