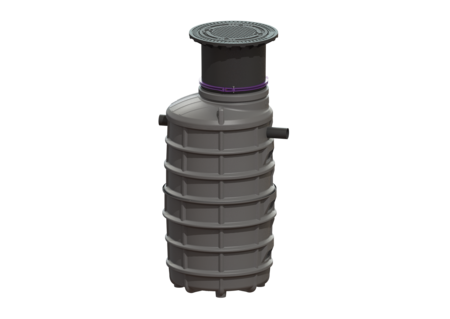

Coalescence separator EasyOil

NS 3, Class I, Sludge trap 1600 l, D

99703.10D
PDF product data sheet

KESSEL Coalescence separator EasyOil, nominal size 3, separator class I, load class D 400, underground installation, sludge trap capacity 850 l, total volume 1700 l

  • Permanent leak tightness up to ground level
  • Resistant to and suitable for up to 100 % share of biodiesel (FAME)
  • Suitable for filling stations with high-performance filling pumps, E10 and biodiesel fuels
Item no. 99703.10D
GTIN 4026092039588
Price group 60

    Coalescence separator EasyOil NS 3, Class I, Sludge trap 1600 l, D
    The separator for light liquids is suitable for installation in the ground and is equipped with a removable coalescence insert. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. The surface water resistant cover/s makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. On-site connection to inlet and outlet (PE) with PE-HD pipes according to DIN 19537, PVC pipes according to DIN 19534, PP or AS possible. When selecting the appropriate seals and pipe materials, the applicable standards must be observed. 20 year polyethylene warranty. Variant Nominal size (NS): 3 Coalescence insert: yes Load-bearing capacity (DIN 19901): E4 General characteristics Material: PE Standard: EN 858 Installation situation: underground installation Separator class: I Range of applications for light liquids: from 0.85 to 0.95 g/cm3 Dimensions Net weight: 222 kg Gross weight: 240 kg Installation depth: 545 - 995 mm Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees Tank/drain body Distance pipe bottom outlet to tank bottom: 1555 mm Distance pipe bottom inlet to tank bottom: 1605 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Clear width of tank (LW): 1000 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Colour of cover: black Load class: D 400 (EN 124) Wastewater contents Total volume: 1700 l Contents of sludge trap: 850 l Storage quantity of light liquid: 200 l
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680276 Clamping ring for upper sections d: 600 mm 680276 Show
    680278 Removal key for cover plates 680278 Show
    680299 Float switch with density 0.97 g/cm3 680299 Show
    680300 Float switch with density 0.92 g/cm3 680300 Show
    680301 Float switch with density 0.87 g/cm3 680301 Show
    680322 Cover plate Class D, grey iron, unlocked 680322 Show
    860116 Seal for upper sections d: 600 mm 860116 Show
    860141 LÖVM Upper section 860141 Show
    917112 Removal tool for 'Goliath' chamber cover 917112 Show
    917816 Coalescence insert for chamber system 917816 Show
    • Material (material): PE
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 3
    • Load class (belastungsklasse): D 400 (EN 124)
    • Installation depth (einbautiefe): 545  mm
