Coalescence separator EasyOil

NS 6, Class I, Sludge trap 1000 l, B

99706.10B
PDF product data sheet

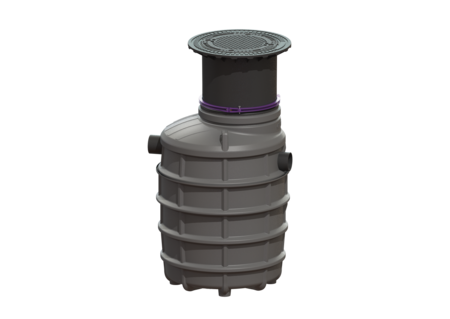

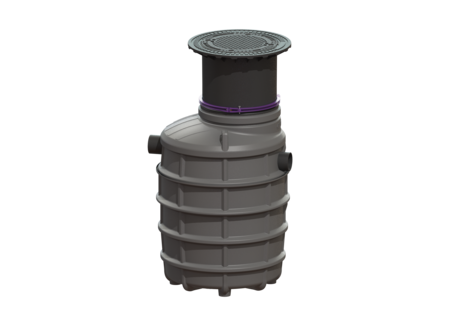

KESSEL Coalescence separator EasyOil, nominal size 6, separator class I, load class B 125, underground installation, sludge trap capacity 850 l, total volume 1700 l

  • Permanent leak tightness up to ground level
  • Resistant to and suitable for up to 100 % share of biodiesel (FAME)
  • Suitable for filling stations with high-performance filling pumps, E10 and biodiesel fuels
Item no. 99706.10B
GTIN 4026092040355
Price group 60

    Coalescence separator EasyOil NS 6, Class I, Sludge trap 1000 l, B
    The separator for light liquids is suitable for installation in the ground and is equipped with a removable coalescence insert. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. The surface water resistant cover/s makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. On-site connection to inlet and outlet (PE) with PE-HD pipes according to DIN 19537, PVC pipes according to DIN 19534, PP or AS possible. When selecting the appropriate seals and pipe materials, the applicable standards must be observed. 20 year polyethylene warranty. Variant Nominal size (NS): 6 Coalescence insert: yes Load-bearing capacity (DIN 19901): E2 General characteristics Material: PE Standard: EN 858 Installation situation: underground installation Separator class: I Range of applications for light liquids: from 0.85 to 0.95 g/cm3 Dimensions Net weight: 161 kg Gross weight: 179 kg Installation depth: 560 - 1090 mm Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees Packaging dimension: length: 2850 mm Packaging dimension: width: 1400 mm Packaging dimension: height: 1750 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1020 mm Distance pipe bottom inlet to tank bottom: 1090 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Clear width of tank (LW): 1000 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Colour of cover: black Load class: B 125 (EN 124) Wastewater contents Total volume: 1700 l Contents of sludge trap: 850 l Storage quantity of light liquid: 200 l
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680276 Clamping ring for upper sections d: 600 mm 680276 Show
    680278 Removal key for cover plates 680278 Show
    680321 Cover plate Class B, grey iron, unlocked 680321 Show
    860116 Seal for upper sections d: 600 mm 860116 Show
    917112 Removal tool for 'Goliath' chamber cover 917112 Show
    917816 Coalescence insert for chamber system 917816 Show
    • Material (material): PE
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 6
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 560  mm
