Shell Kit

for Ecolift

PDF product data sheet

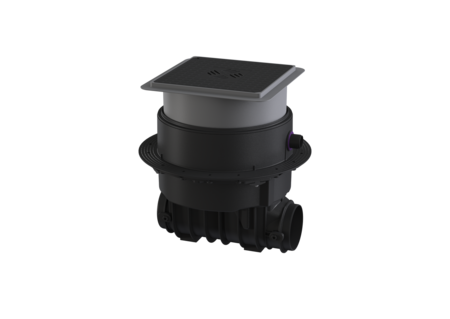

KESSEL Shell Kit for Ecolift, wastewater with sewage, floor slab installation, with submersible pumps

Item no. 21000S-RBK
GTIN 4026092097137
Price group 20

    Shell Kit for Ecolift
    KESSEL shell kit for Ecolift, without sockets, black cover Shell kit consisting of a drain body, upper section and flange for joint sealing. The inlet and outlet sockets are not included. For combination with a KESSEL technology kit for creating an Ecolift backwater lifting station. General characteristics Colour: black Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-487 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) ATEX: no Odour trap: Multistop Dimensions Net weight: 25 kg Gross weight: 30,5 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 590 mm Width: 590 mm Packaging dimension: length: 785 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Tank/drain body Nominal pressure (PN): 6 Pressure pipe connection (OD): 40 mm Socket version: optional Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: L 15 (EN 1253-1)
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of wastewater (abwasserart_de): with sewage
    • Type of cover (abdeckungsart): Cover plate with slotted cover
