Shell Kit

PDF product data sheet

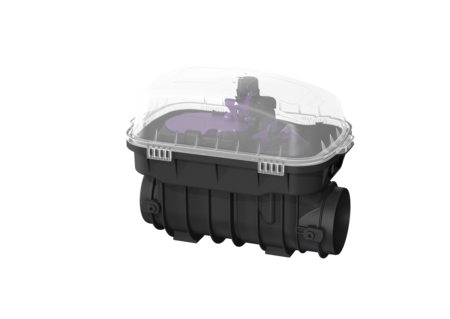

KESSEL Shell Kit, wastewater with sewage, exposed drainage pipe, with submersible pumps

Item no. 24000-RBK
GTIN 4026092097076
Price group 30

    Shell Kit
    KESSEL shell kit for Pumpfix F, without sockets Shell kit consisting of a drain body and upper section. The inlet and outlet sockets are not included. For combination with a KESSEL technology kit for creating a Pumpfix F backwater pumping station. General characteristics Colour: black Type of wastewater: with sewage Installation situation: exposed drainage pipe Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-388 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) ATEX: no Dimensions Net weight: 8,06 kg Gross weight: 9,59 kg Packaging dimension: length: 785 mm Packaging dimension: width: 385 mm Packaging dimension: height: 465 mm Tank/drain body Socket version: optional Coverage features Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Width of cover: 350 mm Height of cover: 165 mm Length of cover: 542 mm Locking: Clip closure
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): with sewage
    • Type of cover (abdeckungsart): Protective cover
