Shell Kit
for Pumpfix F, without nozzles, tileable
KESSEL Shell Kit for Pumpfix F, without nozzles, tileable, wastewater with sewage, floor slab installation, with submersible pumps
| Item no. | 24000X-RBK |
|---|---|
| GTIN | 4026092097052 |
| Price group | 30 |

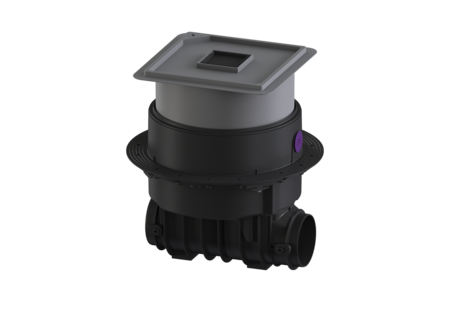

Shell Kit for Pumpfix F, without nozzles, tileable
KESSEL shell kit for Pumpfix F, without sockets, tileable Shell kit consisting of a drain body, upper section and flange for joint sealing. The inlet and outlet sockets are not included. For combination with a KESSEL technology kit for creating a Pumpfix F backwater pumping station. General characteristics Colour: black Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-388 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) ATEX: no Odour trap: Multistop Dimensions Net weight: 13,74 kg Gross weight: 16,55 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 785 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Tank/drain body Socket version: optional Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Max. flooring height: 16 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Approval |
|---|
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation): floor slab installation
- Type of wastewater (abwasserart_de):
with sewage
- Type of cover (abdeckungsart): tileable cover plate
