Ferrofix cleanout
Sys 100, odour-tight

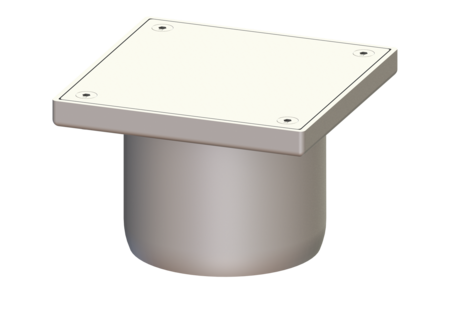

The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed, screwed cover plate.
| Item no. | 27177-PL |
|---|---|
| GTIN | 4026092090879 |
| Price group | 70 |
Ferrofix cleanout Sys 100, odour-tight
The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed, screwed cover plate. Variant System: 100 Dimensions Net weight: 2,08 kg Gross weight: 2,18 kg Height: 93 mm Packaging dimension: length: 195 mm Packaging dimension: width: 195 mm Packaging dimension: height: 182 mm Coverage features Type of cover: closed cover plate Cover material: Stainless steel 14301 Width of cover: 146 mm Height of cover: 17 mm Length of cover: 146 mm Surface: Polished SST Locking: screwed Load class: L 15 (EN 1253-1) Tightness: odour-tight Shape of upper section: square Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): closed cover plate
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Locking (verriegelung): screwed
- (abdichtung_aufsatzstueck):
