Ferrofix cleanout

Sys 100, adhesive, tileabl., odour-tight

27177-PLF-KF
PDF product data sheet

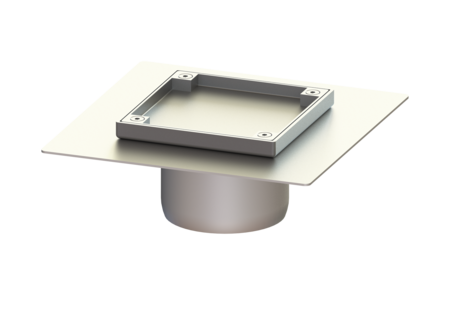

The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed, screwed cover plate.

Item no. 27177-PLF-KF
GTIN 4026092090848
Price group 70

    Ferrofix cleanout Sys 100, adhesive, tileabl., odour-tight
    The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed, screwed cover plate. Variant System: 100 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Dimensions Net weight: 1,62 kg Gross weight: 1,78 kg Length: 246 mm Width: 246 mm Height: 100 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Coverage features Type of cover: tileable cover plate Cover material: Stainless steel 14301 Width of cover: 146 mm Height of cover: 15 mm Length of cover: 146 mm Locking: screwed Load class: L 15 (EN 1253-1) Tightness: odour-tight and gas-tight Max. flooring height: 15 mm Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Type of cover (abdeckungsart): tileable cover plate
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Locking (verriegelung): screwed
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Adhesive flange (suitable for moisture barriers)
