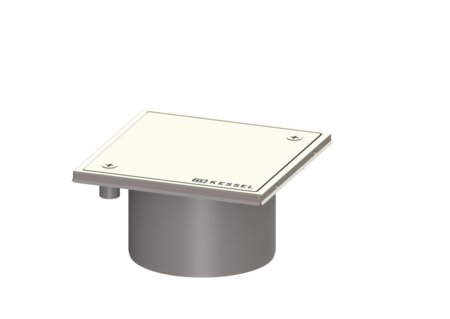

Upper section with cover plate 150x150mm

27196G
PDF product data sheet

KESSEL, surface Polished SST, length 150 mm, width 150 mm, type of cover closed cover plate, locking screwed, frame material Stainless steel 14301, Cover Stainless steel 14301

Item no. 27196G
GTIN 4026092054963
Price group 70

    Variant System: 100 Dimensions Net weight: 0,72 kg Gross weight: 0,79 kg Height: 93 mm Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 80 mm Coverage features Type of cover: closed cover plate Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 17 mm Surface: Polished SST Frame material: Stainless steel 14301 Locking: screwed Load class: L 15 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Type of cover (abdeckungsart): closed cover plate
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Locking (verriegelung): screwed
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck):
