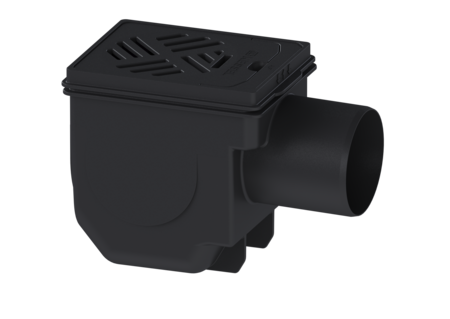

Drehfix basement drain
DN 100, Black grating, Type 5
KESSEL Drehfix basement drain, nominal size (DN) 100, volume 9,76 dm³, type of cover Slotted cover
- Integrated backwater protection
- Simple toolless maintenance and cleaning
| Item no. | 27301 |
|---|---|
| GTIN | 4026092007815 |
| Price group | 10 |
Drehfix basement drain DN 100, Black grating, Type 5
The basement drain for faecal-free wastewater is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Variant Contents of sludge trap: yes Emergency closure: yes Discharge rate (l/s) with 20 mm threshold: 1,8 Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 1253 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: installation-ready Backwater protection: Type 5 Odour trap: included Dimensions Net weight: 1,49 kg Gross weight: 1,51 kg Cutout dimension, width: 190 mm Cutout dimension, length: 320 mm Installation depth: 210 - 240 mm Type of height adjustability: vertically adjustable upper section Length: 285 mm Width: 168 mm Packaging dimension: length: 280 mm Packaging dimension: width: 170 mm Packaging dimension: height: 205 mm Coverage features Type of cover: Slotted cover Colour of cover: black Load class: K 3 (EN 1253-1) Grating material: Polymer Grating colour: black Grid size, length: 190 mm Grid size, width: 150 mm Grid size, height: 14 mm Contents of sludge trap: yes Cover Grating colour: black Grating material: Polymer Grid size, length: 190 mm Grid size, width: 150 mm Grid size, height: 14 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Adapter DN 100/70 | 27602 | Show |
 | Anti-rat protection Insert made of stainless steel | 27609 | Show |
 | Extension section H: 183 mm | 38670 | Show |
 | Inlet socket DN 50, with seal, Threaded ring | 39005 | Show |
 | Inlet socket DN 70, with seal, Threaded ring | 39007 | Show |
 | Inlet socket DN 100, with seal, Threaded ring | 39100 | Show |
 | Hole saw for DN 50/70/100 | 500101 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 100
- Installation situation (einbausituation):
floor slab installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
without sewage
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Backwater protection (rueckstauschutz): Type 5
- Installation depth (einbautiefe): 210 mm
- Odour trap (geruchsverschluss): included
