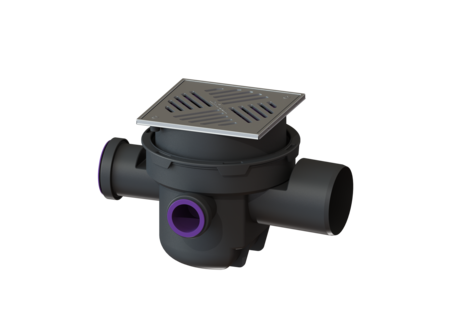

Drain body The Universal
DN 100, AISI304 grat., Backwater protect
KESSEL Drain body The Universal, floor slab installation, socket lateral, type of cover Slotted cover, silver, Cover Stainless steel 14301, waterproof Pre-assembled at the factory, backwater protection Type 5
- Flexible installation: vertically adjustable upper section rotatable
- Integrated backwater protection
- vertically adjustable
| Item no. | 27621 |
|---|---|
| GTIN | 4026092007839 |
| Price group | 10 |
Drain body The Universal DN 100, AISI304 grat., Backwater protect
The polymer drain body is equipped with a removable backwater valve with two backwater flaps, one hand-lockable emergency closure and a sludge bucket. The drain body also has two inlets DN 50 and one inlet DN 70 with blind plug. Material: PP Variant Contents of sludge trap: yes Emergency closure: yes Waterproof flange: Pre-assembled at the factory Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 1253, EN 13564 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: installation-ready Backwater protection: Type 5 Odour trap: included Dimensions Net weight: 3,23 kg Gross weight: 3,55 kg Cutout dimension, width: 320 mm Cutout dimension, length: 400 mm Installation depth: 216 - 266 mm Type of height adjustability: vertically adjustable upper section Length: 380 mm Width: 300 mm Packaging dimension: length: 380 mm Packaging dimension: width: 295 mm Packaging dimension: height: 257 mm Tank/drain body Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Load class: K 3 (EN 1253-1) Grid size, length: 187 mm Grid size, width: 187 mm Grid size, height: 4 mm Contents of sludge trap: yes Cover Grid size, length: 187 mm Grid size, width: 187 mm Grid size, height: 4 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Extension section with pressure sealing flange, mating fl. | 27298 | Show |
 | Adapter DN 100/70 | 27602 | Show |
 | Anti-rat protection Insert made of stainless steel | 27609 | Show |
 | Extension section Pressure sealing flange, Mating flange | 48958 | Show |
 | Membrane for System 200, Waterproof concrete | 48982 | Show |
 | Extension section System 200, H: 175 mm | 48988 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 100
- Cover material (abdeckung_material):
Stainless steel 14301
- Installation situation (einbausituation):
floor slab installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
without sewage
- Socket version (stutzen_ausfuehrung):
lateral
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Backwater protection (rueckstauschutz): Type 5
- Odour trap (geruchsverschluss): included
- (verriegelung):
- (wu-flansch):
- Contents of sludge trap (schlammeimer): yes
