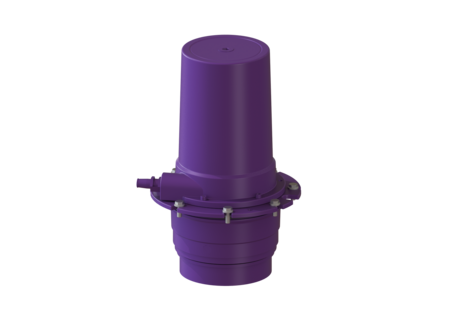

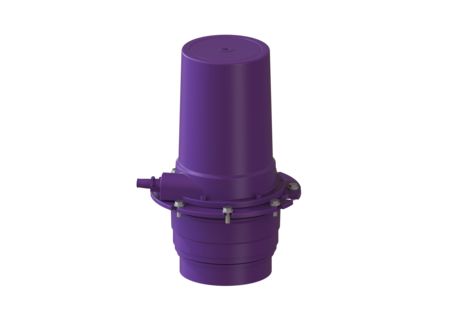

Pump drive SPF 5500
400 V, S3, 5 m cable
Pump drive with multi-vane impeller for wastewater w/ sewage
| Item no. | 28025 |
|---|---|
| GTIN | 4026092058626 |
| Price group | 90 |
Pump drive SPF 5500 400 V, S3, 5 m cable
Pump drive with multi-vane impeller for wastewater w/ sewage General characteristics Type of wastewater: with sewage Dimensions Net weight: 37,12 kg Gross weight: 40 kg Packaging dimension: length: 182 mm Packaging dimension: width: 182 mm Packaging dimension: height: 313 mm Pumping device Pump: SPF 5500 Connection type: Direct connection Rated current: 9,1 A Protection class: I Run dry safe: no Protection class (pump): IP 68 (3m/48h) Temperature monitoring: controlled via control unit Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 28 m Speed: 2850 U/min Power P1: 5,7 kW Power P2: 4,7 kW Operating mode: S3 - 30 % Type of pump connection cable: H07RN-F 7G 1.5 mm² Length of mains cable for pump: 5 m Control Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Test Reports and Certificates |
|---|
- TÜV test mark (pruefzeichen):
ID 1111241940
- Type of wastewater (abwasserart_de):
with sewage
