Technology kit
For Minilift S, underground KTP300

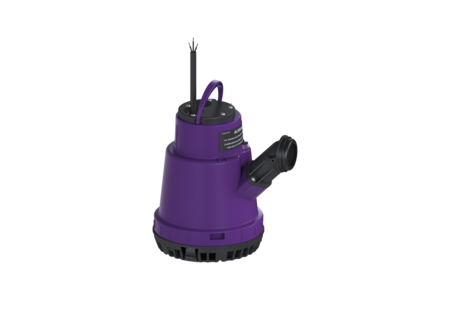

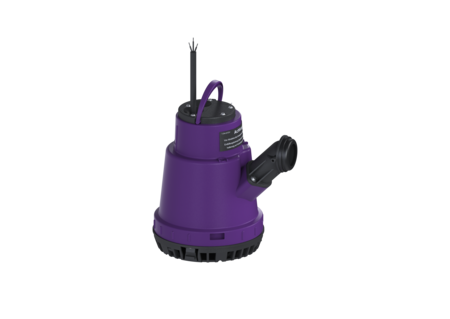

KESSEL Technology kit For Minilift S, underground KTP300, with a submersible KTP 300 pump, operating mode S1, Single unit, pumping height 6 m
| Item no. | 280570-TK |
|---|---|
| GTIN | 4026092108086 |
| Price group | 20 |
Technology kit For Minilift S, underground KTP300
For combination with a KESSEL shell kit for creating a Minilift S small lifting station for wastewater without sewage. The ready to plug in small lifting station for wastewater without sewage is suitable for the disposal of wastewater from individual drainage sources. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL technology kit consisting of: - Pump with multi-vane vortex impeller for maximum operating safety - Includes float switch for level measurement Variant Type of system: Single unit Pump control: Float switch Backflow preventer: integrated General characteristics ATEX: no Dimensions Net weight: 4,21 kg Gross weight: 4,49 kg Packaging dimension: length: 280 mm Packaging dimension: width: 250 mm Packaging dimension: height: 280 mm Pumping device Pump: KTP 300 Number of pumps: 1 Weight, pump: 4 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 1,6 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 8 m³/h Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 5 m Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Rated current: 1,6 A Type of fuse required (electrical protection): C 16 A
