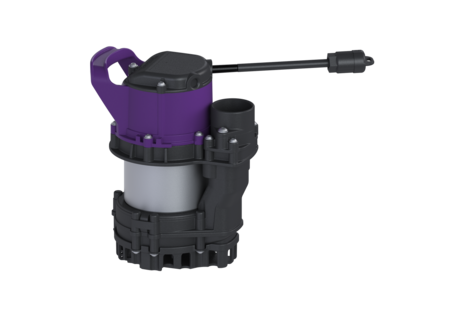

Aquadive GTF 500 submersible pump

without float switch, 10 m

280710
280710
PDF product data sheet

KESSEL Aquadive GTF 500 submersible pump, wastewater without sewage, pump control by without float switch, coded plug, operating mode S1, pumping height 8 m

  • Multi-vane vortex impeller for maximum reliability
  • Longitudinally watertight potted connection cable
  • Integrated shallow extraction
Item no. 280710
GTIN 4026092082485
Price group 20

Aquadive GTF 500 submersible pump without float switch, 10 m
Submersible pump GTF 500 for faecal-free wastewater - housing made of polymer/stainless steel - with longitudinally watertight, moulded connection cable - with removable intake cage and carry handle - with vertical pressure pipe connection - with multi-vane impeller for maximum operating reliability - with integrated low-level suction Variant Pump control: without float switch Pressure pipe connection: vertical General characteristics Material: Polymer Standard: EN 12050-2 Type of wastewater: without sewage Cable length: 10 m ATEX: no Dimensions Net weight: 6,71 kg Gross weight: 7 kg Length: 185 mm Width: 120 mm Height: 220 mm Packaging dimension: length: 276 mm Packaging dimension: width: 241 mm Packaging dimension: height: 265 mm Wastewater contents Pressure pipe connection: R 1 ¼ " Pumping device Pump: GTF 500 Number of pumps: 1 Weight, pump: 6 kg Connection type: coded plug Rated current: 2,5 A Protection class: I Insulation class: F Cos phi - power factor: 0,91 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,5 kW Power P2: 0,36 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 10 m Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Material (material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Type of wastewater (abwasserart_de): without sewage
  • Pump (pumpe): GTF 500
  • Operating voltage (betriebsspannung): 230  V
  • Type of level measurement (niveauerfassung_art):
