Lifting station Aqualift S 100
Duo, GTF 600, Free-standing set-up

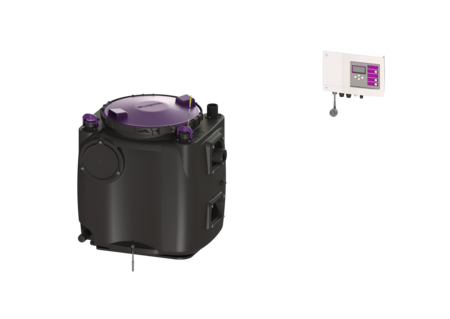

KESSEL Lifting station Aqualift S 100 Duo, wastewater without sewage, coded plug, pump control by Control unit, control unit Comfort, with 2 submersible GTF 600 pumps, operating mode S1
- Easy tool-free maintenance
- Tank made of PE, resistant to aggressive wastewater
- Including backflow preventer for the pressure pipe
| Item no. | 28515 |
|---|---|
| GTIN | 4026092092910 |
| Price group | 20 |
Lifting station Aqualift S 100 Duo, GTF 600, Free-standing set-up
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: duo pump Pump control: Control unit Backflow preventer: integrated Sampling device: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: free-standing installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Duo Dimensions Net weight: 23 kg Gross weight: 29 kg Length: 670 mm Width: 530 mm Height: 650 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 779 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet nominal size (DN): 100 mm Pumping volume: 50 l Tank volume: 120 l Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Pumping device Pump: GTF 600 Number of pumps: 2 Weight, pump: 6 kg Connection type: coded plug Rated current: 2,9 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 12 m³/h Max. pumping height: 8 m Speed: 2750 U/min Power P1: 0,65 kW Power P2: 0,4 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Rated current: 2,9 A
