Lifting station Aqualift S 100
Duo, GTF 1250, Free-standing set-up
KESSEL Lifting station Aqualift S 100 Duo, wastewater without sewage, coded plug, pump control by Control unit, control unit Comfort, with 2 submersible GTF 1250 pumps, operating mode S1
- Easy tool-free maintenance
- Tank made of PE, resistant to aggressive wastewater
- Including backflow preventer for the pressure pipe
| Item no. | 28516 |
|---|---|
| GTIN | 4026092092927 |
| Price group | 20 |

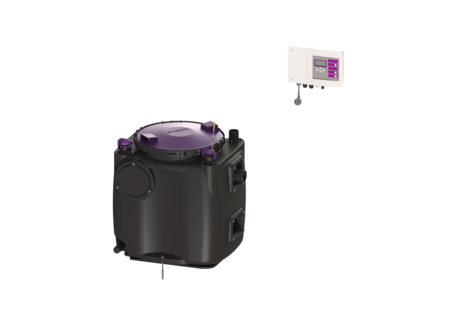

Lifting station Aqualift S 100 Duo, GTF 1250, Free-standing set-up
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: duo pump Pump control: Control unit Backflow preventer: integrated Sampling device: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: free-standing installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Duo Dimensions Net weight: 45,8 kg Gross weight: 45,8 kg Length: 670 mm Width: 530 mm Height: 650 mm Packaging dimension: length: 900 mm Packaging dimension: width: 900 mm Packaging dimension: height: 779 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet nominal size (DN): 100 mm Pumping volume: 50 l Tank volume: 120 l Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Pumping device Pump: GTF 1250 Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,4 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 20 m³/h Max. pumping height: 11 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Rated current: 5,4 A
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show |
 | Retrofit kit Alarm float switch | 28016 | Show |
 | Hole saw for DN 100/125/150 | 500100 | Show |
| Hole saw for DN 50/70/100 | 500101 | Show |
 | Potential-free contact Additio. circuit board for control units | 80072 | Show |
 | Cable accessories Extension for probe | 80889 | Show |
 | Cable accessories Extension for pump | 80891 | Show |
 | Seal for pipe penetration, DN 50 | 850114 | Show |
 | Seal for pipe penetration, DN 70 | 850116 | Show |
 | Seal for pipe penetration, DN 100 | 850117 | Show |
 | Seal for pipe penetration, DN 125 | 850118 | Show |
 | Seal for pipe penetration, DN 150 | 850119 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Control unit Comfort Duo, 230 V | 28746 | Show |
 | One-handed closure for backflow preventer | 680018 | Show |
 | Battery 9 V block | 680034 | Show |
 | Seal for pressure pipe connection | 680067 | Show |
 | Cover with seal | 680076 | Show |
 | Seal for upper section, from 07/2014 | 680150 | Show |
 | Cover d: 420 mm, up to 03/2004 | 680326 | Show |
 | Pump connection with seal and flap | 680475 | Show |
 | Pump connection Minilift, Aqualift S | 680760 | Show |
 | Turn fastener for pump connection lock | 680762 | Show |
 | Flap housing Duo, with pump connector | 680781 | Show |
 | Multi-vane impeller for STF 1300 | 680804 | Show |
 | Pump hanger GTF 1250, Duo | 680974 | Show |
 | Clamp fastener for cover 450 mm | 680975 | Show |
 | Replacement pump GTF 1250 without float switch, 5 m | 680979 | Show |
 | Blind plug for Aqualift S 100/200 lifting station | 680980 | Show |
 | Cable gland for Aqualift S 100/200 | 680981 | Show |
 | Pressure pipe DN 32 for Aqualift S 100 GTF 1250 | 680984 | Show |
 | Connection adapter for Aqualift S 100/200 locking device | 680985 | Show |
 | Inlet socket DN 100 for Aqualift S 100/200 | 680986 | Show |
 | Inlet socket DN 150 for Aqualift S 100/200 | 680987 | Show |
 | Immersion pipe for Aqualift S 200 lifting station | 680989 | Show |
 | Sound absorption mat for Aqualift S 200 lifting station | 680991 | Show |
 | Spiral housing GTF 1250, free ball passage 30 mm | 680998 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): without sewage
- Control unit (schaltgeraet):
Comfort
- Cover material (abdeckung_material):
Polymer
- TÜV test mark (pruefzeichen):
ID 1111241937
- Installation situation (einbausituation):
free-standing installation
- Pump (pumpe): GTF 1250
- (ausfuehrung):
- Type of system (anlagenart): duo pump
