Lifting station Aqualift F Comp.
Mono, SPZ 1000, resistant, Free-standing

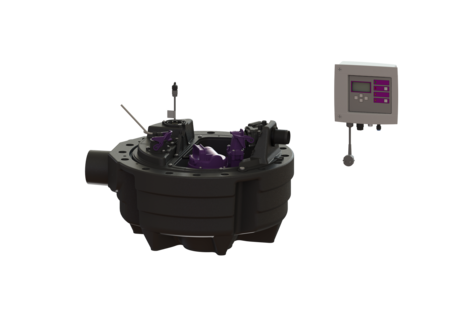

KESSEL Lifting station Aqualift F Comp. Mono, wastewater with sewage, free-standing installation, Single unit, with a submersible SPZ 1000 resistant pump, Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems
- Suitable for complete basement drainage
- High-performance macerator for space-saving and secure drainage
- Maximum operating reliability due to intelligent control unit (Duo)
| Item no. | 28717C |
|---|---|
| GTIN | 4026092093689 |
| Price group | 20 |
Lifting station Aqualift F Comp. Mono, SPZ 1000, resistant, Free-standing
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: Single unit Shut-off valve: without shut-off valve Retaining bracket for the lift protection: yes Sound absorption mat: yes Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-484 System type: Mono Dimensions Net weight: 24 kg Gross weight: 26,5 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 670 mm Width: 580 mm Height: 395 mm Packaging dimension: length: 620 mm Packaging dimension: width: 620 mm Packaging dimension: height: 515 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 350 mm Distance pipe bottom inlet to tank bottom: 152 mm Distance from centre of inlet pipe to tank bottom: 207 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 20 l Tank volume: 40 l Pumping device Pump: SPZ 1000 resistant Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): Fuse protection through control unit 230 V Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Rated current: 5,2 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Adapter DN 50/70 | 27126 | Show |
 | Adapter DN 100/70 | 27602 | Show |
 | Pressure pipe set 5 m pressure hose, DA 40 mm | 28040 | Show |
| Pressure pipe set with 5 m pressure hose, DA 50 mm | 28062 | Show |
 | Adapter for pressure pipe connection, DN 32, PE | 28086 | Show |
 | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Show |
 | Inlet socket DN 50, with seal, Threaded ring | 39005 | Show |
 | Inlet socket DN 70, with seal, Threaded ring | 39007 | Show |
 | Inlet socket DN 100, with seal, Threaded ring | 39100 | Show |
 | Hole saw for DN 50/70/100 | 500101 | Show |
 | Seal for pipe penetration, DN 50 | 850114 | Show |
 | Seal for pipe penetration, DN 70 | 850116 | Show |
 | Seal for pipe penetration, DN 100 | 850117 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Splash guard set for optical probe | 28706 | Show |
 | Control unit Comfort Mono, 230 V | 28731 | Show |
 | Cover for pump opening | 28732 | Show |
 | Pump plate Aqualift F Compact | 28733 | Show |
 | Connector Immersion pipe | 28734 | Show |
 | One-handed closure for backflow preventer | 680018 | Show |
 | Battery 9 V block | 680034 | Show |
 | Pump connection for pumping stations, up to 12/2015 | 680065 | Show |
 | Seal for pressure pipe connection | 680067 | Show |
 | Turn fastener for pumps | 680070 | Show |
 | Pressure hose Sold by the metre, 6x4 mm 100 | 680071 | Show |
 | Cover with seal | 680076 | Show |
 | Bracket Pressure pipe connection | 680119 | Show |
 | Seal set Aqualift F Compact Mono | 680453 | Show |
 | Pump connection Aqualift F Compact, Mono, from 01/2016 | 680486 | Show |
 | Threaded connection for Aqualift F Compact | 680676 | Show |
 | Immersion pipe level measurement for Aqualift S Compact | 680776 | Show |
 | Replacement pump SPZ 1000 resistant | 680951 | Show |
 | Spare part set, optical probe 5 m cable | 80888 | Show |
 | Adapter Set optical probe | 80892 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Approval | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- Type of wastewater (abwasserart_de): with sewage
- Control unit (schaltgeraet):
Comfort
- Installation situation (einbausituation):
free-standing installation
- Pump (pumpe): SPZ 1000 resistant
- (einbautiefe):
- (ausfuehrung):
