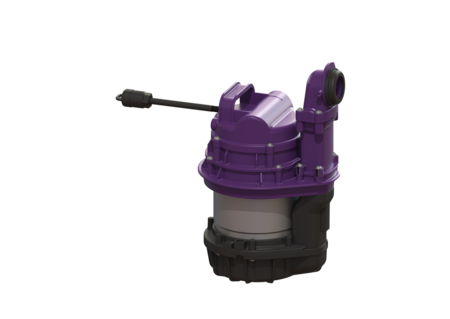

Replacement pump KTP/SPZ 1000
230 V, with extended press. pipe connec.
Replacement pump with extended pressure pipe connection and macerator for wastewater with sewage, ready for connection with coded plug
| Item no. | 28739 |
|---|---|
| GTIN | 4026092051979 |
| Price group | 90 |
Replacement pump KTP/SPZ 1000 230 V, with extended press. pipe connec.
Replacement pump with extended pressure pipe connection and macerator for wastewater with sewage, ready for connection with coded plug General characteristics Standard: EN 12050-1 Type of wastewater: with sewage ATEX: no Dimensions Net weight: 9,67 kg Gross weight: 10,37 kg Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Pumping device Pump: SPZ 1000 Connection type: coded plug Operating voltage: 230 V Mains frequency: 50 Hz Rated current: 5,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,7 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 5 m Control Connection type: coded plug Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Type of wastewater (abwasserart_de):
with sewage
