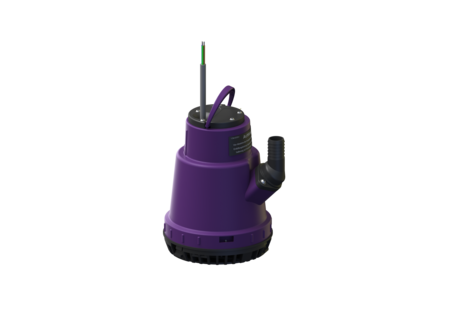

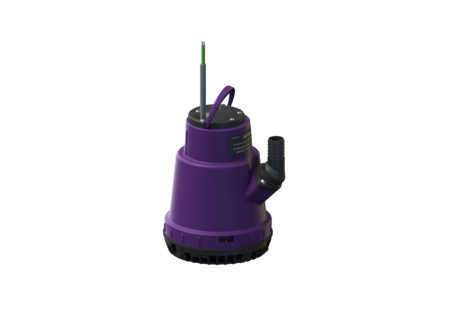

Submersible pump Aquadive KTP 300
without float switch, 10 m
KESSEL Submersible pump Aquadive KTP 300, wastewater without sewage, integrated, IP 68 (3m), operating mode S1, volume 17,58 dm³, pumping height 6 m
- Multi-vane vortex impeller for maximum reliability
- Longitudinally watertight potted connection cable
- Integrated shallow extraction
| Item no. | 28740 |
|---|---|
| GTIN | 4026092000908 |
| Price group | 20 |
Submersible pump Aquadive KTP 300 without float switch, 10 m
KTP 300 submersible pump without float switch, with non-return flap, pivoted connection, removable intake cage; the water level can be lowered to 8 mm. General characteristics Material: Polymer Standard: EN 12050-2 Type of wastewater: without sewage Cable length: 10 m ATEX: no Dimensions Net weight: 4,33 kg Gross weight: 4,69 kg Length: 275 mm Width: 390 mm Height: 216 mm Packaging dimension: length: 260 mm Packaging dimension: width: 260 mm Packaging dimension: height: 260 mm Wastewater contents Pressure pipe connection: R 1 " Pumping device Pump: KTP 300 Number of pumps: 1 Weight, pump: 4 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 1,6 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 10 m Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- Material (material):
Polymer
- TÜV test mark (pruefzeichen):
ID 1111241937
- Type of wastewater (abwasserart_de): without sewage
- Pump (pumpe): KTP 300
- Operating voltage (betriebsspannung): 230 V
- (niveauerfassung_art):
