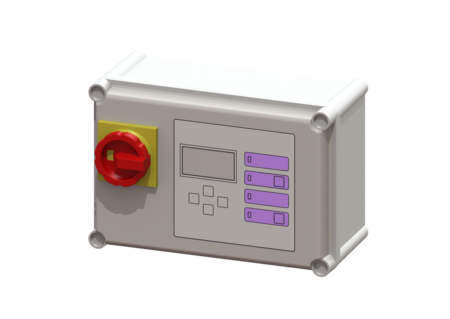

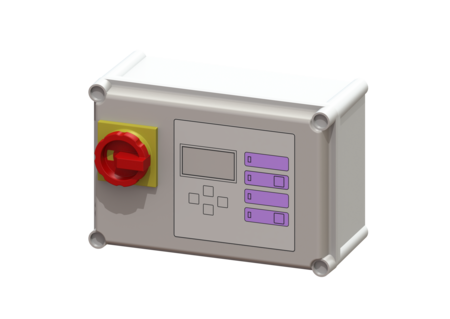

Comfort control unit
400V, Aqualift Mono, 2.5-4.0 A
KESSEL Comfort control unit, nominal current 2,5 - 4 A, no, potential-free contact yes, Single unit
- Self-diagnosis system (SDS)
- Potential-free contact for faults/warnings
- Reminder for when maintenance is due
| Item no. | 28755 |
|---|---|
| GTIN | 4026092055007 |
| Price group | 20 |
Comfort control unit 400V, Aqualift Mono, 2.5-4.0 A
Comfort control unit suitable for 400V single stations. User-friendly menu navigation in multi-line display. With self-diagnosis system (SDS) and reminder when maintenance is due. Display of the current measured values. Easy setting of the function-related parameters, operating hours counter. Optional forwarding of alarm and collective fault messages via GSM interface. Variant Series: ab 03/2010 Type of system: Single unit General characteristics Colour: grey System type: Mono ATEX: no Dimensions Net weight: 2,47 kg Gross weight: 3,19 kg Packaging dimension: length: 330 mm Packaging dimension: width: 250 mm Packaging dimension: height: 190 mm Pumping device Rated current: 2,5 - 4 A Control Control unit: Comfort Motor protection switch: yes Protection class control unit: IP 54 Potential-free contact: yes GSM interface: yes USB interface: no Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Conformity |
- Control unit (schaltgeraet):
Comfort
- TÜV test mark (pruefzeichen):
ID 1111241940
- (niveauerfassung_art):
- ATEX (atex): no
