Lifting station Aqualift F Duo
Comfort, SPF 3000-S3, shut-off valve

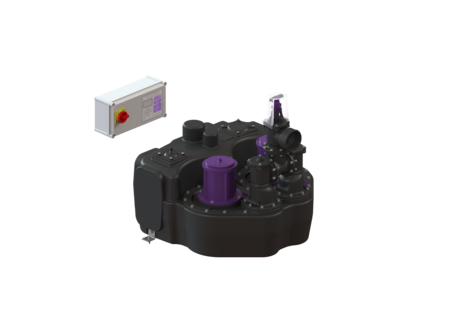

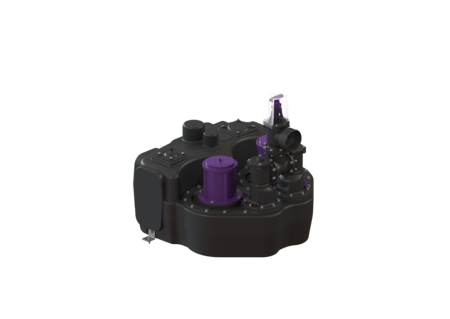

KESSEL Lifting station Aqualift F Duo, wastewater with sewage, operating mode S3 - 50 %, pumping height 16 m, control unit Comfort, height 788 mm, with 2 submersible SPF 3000 pumps, pressure pipe connection horizontal, shut-off valve Shut-off valve made of polymer
- Different performance classes available
- Pressure sensor for reliable pneumatic level measurement
- Control unit with self-diagnosis system
| Item no. | 28767 |
|---|---|
| GTIN | 4026092054581 |
| Price group | 20 |
Lifting station Aqualift F Duo Comfort, SPF 3000-S3, shut-off valve
The lifting station for faecal and faecal-free wastewater is equipped with two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: Shut-off valve made of polymer Retaining bracket for the lift protection: yes Sound absorption mat: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) ATEX: no Dimensions Net weight: 78 kg Gross weight: 100 kg Length: 773 mm Width: 780 mm Height: 788 mm Packaging dimension: length: 855 mm Packaging dimension: width: 775 mm Packaging dimension: height: 570 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Distance pipe bottom inlet to tank bottom: 245 mm Distance from centre of inlet pipe to tank bottom: 300 mm Inlet max. scoring (DN): 150 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 2 Pumping volume: 50 l Tank volume: 120 l Pumping device Pump: SPF 3000 Number of pumps: 2 Weight, pump: 24 kg Connection type: Direct connection Rated current: 5,4 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,89 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 47 m³/h Max. pumping height: 16 m Speed: 2845 U/min Power P1: 3,2 kW Power P2: 2,7 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe with pressure monitor Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 5,4 A
