Replacement pump KTP 300

for Minilift

28836
PDF product data sheet

Replacement pump for sewage-free wastewater

Item no. 28836
GTIN 4026092000922
Price group 90

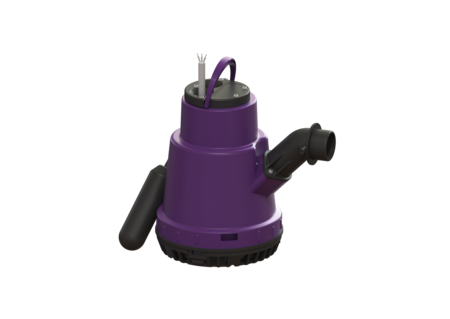

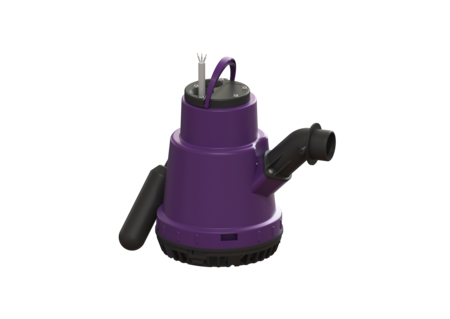

    Replacement pump KTP 300 for Minilift
    Replacement pump for sewage-free wastewater Variant Pump control: Float switch General characteristics Standard: EN 12050-2 Type of wastewater: without sewage Cable length: 5 m Dimensions Net weight: 4,21 kg Gross weight: 4,49 kg Packaging dimension: length: 276 mm Packaging dimension: width: 241 mm Packaging dimension: height: 265 mm Pumping device Pump: KTP 300 Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Mains frequency: 50 Hz Rated current: 1,9 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Length of mains cable for pump: 5 m Control Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    28039 Impeller KTP 300, with intake cover 28039 Show
    680013 Intake cage with push-fit fastener, for KTP 300 680013 Show
    680014 Seal O-ring for pressure pipe connection 680014 Show
    680017 Pressure pipe connection for pump, Minilift 680017 Show
    680067 Seal for pressure pipe connection 680067 Show
    680759 Pressure pipe connection KTP 300 680759 Show
    • Type of wastewater (abwasserart_de): without sewage
