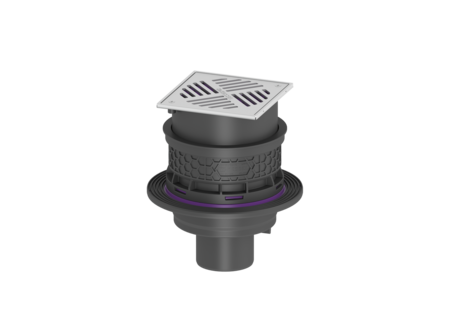

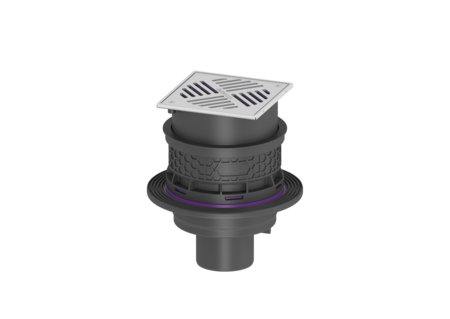

Universal Plus basement drain
ver., SST, Odour trap, Waterpr.concrete
KESSEL Universal Plus basement drain, type of cover Slotted cover made of stainless steel, odour trap included, silver, Cover Stainless steel 14301, socket vertical, floor slab installation, installation depth 285 - 340 mm
- Sustainable due to use of recycled material
- Inlets above the floor slab, no penetration required
- Vertical outlet for easy installation and easy access to the main drainage pipe
| Item no. | 29141 |
|---|---|
| GTIN | 4026092096901 |
| Price group | 10 |
Universal Plus basement drain ver., SST, Odour trap, Waterpr.concrete
The polymer Universal Plus basement drain is used for drainage of non-faecal wastewater and is equipped with a removable odour closure and a sludge bucket. Including temporary protective cover. The drain is pressure-waterproof up to 0.6 bar (MFPA Leipzig tested) and radon-tight (IAF Radioökologie GmbH tested). Variant Contents of sludge trap: yes Waterproof flange: Pre-assembled at the factory Discharge rate (l/s) with 10 mm threshold: 1,6 Discharge rate (l/s) with 20 mm threshold: 2,3 General characteristics Colour: black Standard: EN 1253 Nominal size (DN): 100 Type of wastewater: without sewage Installation situation: floor slab installation Odour trap: included Dimensions Net weight: 3,63 kg Gross weight: 4,04 kg Diameter: 295 mm Cutout dimension, width: 310 mm Cutout dimension, length: 310 mm Adjustment range: 23 - 80 Installation depth: 285 - 340 mm Type of height adjustability: vertically adjustable upper section Height: 270 mm Packaging dimension: length: 344 mm Packaging dimension: width: 344 mm Packaging dimension: height: 353 mm Tank/drain body Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Socket version: vertical Coverage features Type of cover: Slotted cover made of stainless steel Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 200 mm Height of cover: 25 mm Length of cover: 200 mm Load class: K 3 (EN 1253-1) Contents of sludge trap: yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Sludge bucket for basement drain "The Universale" | 27604 | Show |
 | Odour trap for basement drain 29111 | 27605 | Show |
 | Slotted cover 187 x 187 mm, stainless steel, class K 3 | 27643 | Show |
 | Universal Plus basement drain ver., odour trap, Waterproof concrete | 29102 | Show |
 | Universal Plus basement drain vertical, with odour trap | 29103 | Show |
 | Upper section with a stainless steel cover | 48954 | Show |
 | Seal for basement drain System 200, D: 175 mm | 681036 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 100
- Cover material (abdeckung_material):
Stainless steel 14301
- Installation situation (einbausituation):
floor slab installation
- Type of wastewater (abwasserart_de):
without sewage
- Socket version (stutzen_ausfuehrung):
vertical
- Load class (belastungsklasse): K 3 (EN 1253-1)
- (rueckstauschutz):
- (verriegelung):
- Odour trap (geruchsverschluss): included
- (wu-flansch):
- Contents of sludge trap (schlammeimer): yes
