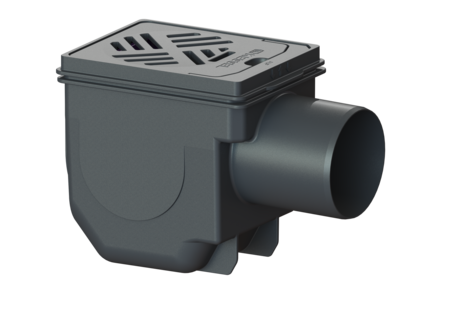

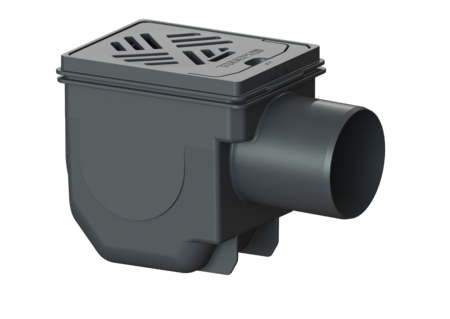

Basement drain

DN 100, Black grating, 150 x 190 mm

33101
PDF product data sheet

KESSEL Basement drain, nominal size (DN) 100, volume 9,86 dm³, type of cover Slotted cover, Cover Polymer, length 200 mm

  • Integrated odour trap
  • Including sludge bucket
Item no. 33101
GTIN 4026092007860
Price group 10

    Basement drain DN 100, Black grating, 150 x 190 mm
    The basement drain made of polymer for floor slab installation is equipped with an odour trap and a sludge bucket. The upper section with slotted grating is vertically adjustable. Variant Contents of sludge trap: yes Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 1,8 General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: included Dimensions Vertical adjustment: 25 - 55 mm Net weight: 1,37 kg Gross weight: 1,45 kg Cutout dimension, width: 190 mm Cutout dimension, length: 320 mm Installation depth: 210 - 240 mm Type of height adjustability: vertically adjustable upper section Length: 285 mm Width: 170 mm Packaging dimension: length: 290 mm Packaging dimension: width: 170 mm Packaging dimension: height: 200 mm Tank/drain body Material of drain body: PP Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Polymer Colour of cover: black Width of cover: 190 mm Length of cover: 150 mm Frame material: Polymer Locking: placed Load class: K 3 (EN 1253-1) Rim width: 159 mm Rim length: 200 mm Upper section material: Polymer Contents of sludge trap: yes
      Title Item no.
      Title Item no.
      Title Item no.
    27602 Adapter DN 100/70 27602 Show
    38670 Extension section H: 183 mm 38670 Show
    39005 Inlet socket DN 50, with seal, Threaded ring 39005 Show
    39007 Inlet socket DN 70, with seal, Threaded ring 39007 Show
    39100 Inlet socket DN 100, with seal, Threaded ring 39100 Show
      Title Item no.
    27205 Slotted cover 190x150 mm, polymer, black 27205 Show
    27308 Sludge bucket for Drehfix basement drain, from 01/2002 27308 Show
    CAD Data
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Polymer
    • Frame material (rahmen_material): Polymer
    • Upper section material (material_aufsatzstueck): Polymer
    • Socket version (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • (rueckstauschutz):
    • Odour trap (geruchsverschluss): included
    • Locking (verriegelung): placed
    • (wu-flansch):
    • Contents of sludge trap (schlammeimer): yes
