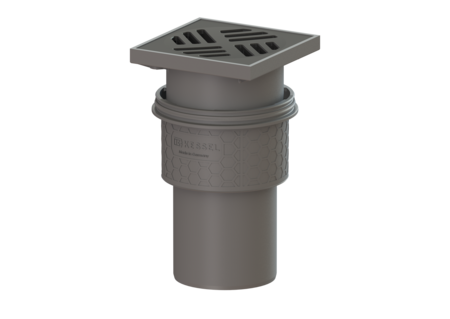

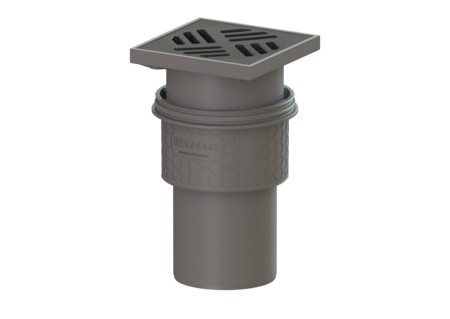

Practicus basement drain

DN 100, Black grating, Vertical outlet

34102
PDF product data sheet

KESSEL Practicus basement drain, nominal size (DN) 100, socket vertical, type of cover Slotted cover, Cover Polymer

  • Vertically adjustable upper section
  • Suitable for floor slab installation
Item no. 34102
GTIN 4026092047705
Price group 10

    Practicus basement drain DN 100, Black grating, Vertical outlet
    The Practicus basement drain is made of polymer and is suitable for floor slab installation. The upper section with slotted grating is vertically adjustable. Variant Contents of sludge trap: yes Discharge rate (l/s) with 10 mm threshold: 1,1 Discharge rate (l/s) with 20 mm threshold: 1,8 General characteristics Standard: EN 1253-2 Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: no Dimensions Net weight: 1,33 kg Gross weight: 1,55 kg Cutout dimension, width: 180 mm Cutout dimension, length: 180 mm Installation depth: 221 - 277 mm Type of height adjustability: vertically adjustable upper section Length: 150 mm Width: 150 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Polymer Colour of cover: black Width of cover: 138 mm Length of cover: 138 mm Frame material: Polymer Locking: placed Load class: K 3 (EN 1253-1) Shape of upper section: square Upper section material: Polymer Contents of sludge trap: yes
      Title Item no.
      Title Item no.
      Title Item no.
    48403 Extension section H: 140 mm, with glued flange 48403 Show
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
    48500 Odour trap Multistop, System 125 48500 Show
    48550 Odour trap Megastop 48550 Show
    48700 Hair filter Polymer, for System 125 bathroom drains 48700 Show
    48900 Extension section H: 120 mm, with glued flange 48900 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
      Title Item no.
    48168 Sludge bucket d: 120 mm 48168 Show
    48193 Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Show
    CAD Data
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Cover material (abdeckung_material): Polymer
    • Frame material (rahmen_material): Polymer
    • Upper section material (material_aufsatzstueck): Polymer
    • Socket version (stutzen_ausfuehrung): vertical
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): no
    • Contents of sludge trap (schlammeimer): yes
