Drain body Classic bathr. drain
Sys 100, DN 70, Horizontal outlet

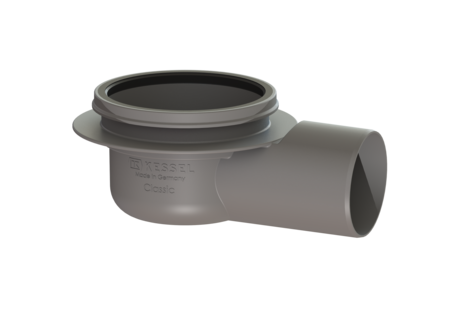

KESSEL Drain body Classic bathr. drain, length 184 mm, nominal size (DN) 70, socket lateral, design cover, Sealing water height mm
- Odour trap height: 50 mm
- Lip seal fixed to the drain body
- System 100 - Modular system
| Item no. | 40171 |
|---|---|
| GTIN | 4026092029374 |
| Price group | 10 |
Drain body Classic bathr. drain Sys 100, DN 70, Horizontal outlet
The drain body for Classic floor/bathroom drains is made of polymer and is equipped with a secure, reliably installed seal. Variant System: 100 Discharge rate (l/s) with 20 mm threshold: 0,8 General characteristics Standard: EN 1253-2 Nominal size (DN): 70 Outer diameter (OD): 75 mm Odour trap: no Dimensions Net weight: 0,17 kg Gross weight: 0,22 kg Length: 184 mm Width: 156 mm Height: 90 mm Packaging dimension: length: 205 mm Packaging dimension: width: 165 mm Packaging dimension: height: 90 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: lateral
| Title | Item no. | ||
|---|---|---|---|
 | Upper section System 100, Slotted cover, 304 SST, K 3 | 27165 | Show |
 | Upper section System 100, Slotted cover, anti-slip | 27176 | Show |
 | Upper section System 100, Slotted cover, white, K 3 | 27192 | Show |
 | Upper section Sys100, Kessel des cover, 304SST, L15 | 27201 | Show |
 | Upper section Sys 100, Oval des cover, 304 SST, L 15 | 27202 | Show |
 | Upper section System 100, tileable, Polymer, K 3 | 27210 | Show |
 | Upper section System 100, tileable, 304 SST, K 3 | 27211 | Show |
 | Variofix upper section System 100, Slotted cover, 304 SST, K 3 | 47901 | Show |
 | Variofix upper section System 100, Slotted cover, 304 SST, L 15 | 47902 | Show |
 | Variofix upper section Sys100, Kessel des cover, 304 SST, L 15 | 47904 | Show |
 | Variofix upper section Sys100, Oval ded cover, 304 SST, L 15 | 47905 | Show |
 | Variofix upper section System 100, tileable, 304 SST, K 3 | 47906 | Show |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Extension section System 100, H: 161 mm | 27146 | Show |
 | Sludge bucket d: 110 mm | 27168 | Show |
 | Extension section System 100, with pressure sealing flange | 27198 | Show |
 | Extension section System 100, with glued flange | 27199 | Show |
 | Odour trap Multistop, System 100 | 43500 | Show |
 | Hair filter Polymer, for System 100 bathroom drains | 43700 | Show |
 | Intermediate section with system 100 glued flange | 47900 | Show |
| Title | Item no. |
|---|
| CAD Data |
|---|
- Nominal size (DN) (nennweite): 70
- Material of drain body (material_grundkoerper):
ABS
- Socket version (stutzen_ausfuehrung):
lateral
- (abdeckungsart):
- (abdichtung_am_Grundkoerper):
- (form_Aufsatzstueck):
