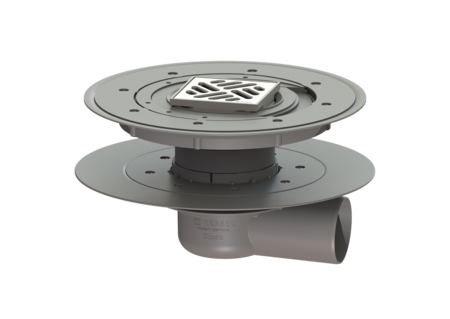

Variofix Classic bathroom drain

Gl fl., DN 70, horiz., slot grat., K3

40179.50
PDF product data sheet

KESSEL Variofix Classic bathroom drain, length 332 mm, nominal size (DN) 70, outside diameter (OD) 75 mm, type of cover Slotted cover, cover width 95 mm, frame material ABS, socket lateral, Sealing water height 50 mm

  • Odour trap height: 50 mm
  • Lip seal fixed on the drain body
  • Side adjustable cover
Item no. 40179.50
GTIN 4026092029428
Price group 10

    Variofix Classic bathroom drain Gl fl., DN 70, horiz., slot grat., K3
    The Classic bathroom drain is suitable for indoor floor drainage. The drain made of ABS is equipped with a telescopic, height-adjustable upper section made of polymer, a removable odour trap as well as a secure, reliably installed seal. Including upper section for combined waterproofing for alternative WP layer. Variant Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 0,8 General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 75 mm Odour trap: included Dimensions Vertical adjustment: 55 - 120 mm Net weight: 2,14 kg Gross weight: 2,9 kg Cutout dimension, width: 350 mm Cutout dimension, length: 350 mm Type of height adjustability: vertically adjustable upper section Length: 332 mm Width: 332 mm Packaging dimension: length: 490 mm Packaging dimension: width: 275 mm Packaging dimension: height: 495 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 95 mm Length of cover: 95 mm Frame material: ABS Locking: placed Load class: K 3 (EN 1253-1) Rim width: 132 mm Rim length: 132 mm Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    27118 Adapter DN 50/40 27118 Show
    27126 Adapter DN 50/70 27126 Show
    27146 Extension section System 100, H: 161 mm 27146 Show
    27168 Sludge bucket d: 110 mm 27168 Show
    27198 Extension section System 100, with pressure sealing flange 27198 Show
    27199 Extension section System 100, with glued flange 27199 Show
    43500 Odour trap Multistop, System 100 43500 Show
    43700 Hair filter Polymer, for System 100 bathroom drains 43700 Show
    47900 Intermediate section with system 100 glued flange 47900 Show
    48650 Installation adhesive 2C installation mortar 48650 Show
      Title Item no.
    27151 Slotted cover 95x95 mm, SST 27151 Show
    47200 Odour trap Sealing water height 50 mm 47200 Show
    • Nominal size (DN) (nennweite): 70
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): ABS
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): lateral
    • Type of cover (abdeckungsart): Slotted cover
    • (abdichtung_am_Grundkoerper):
    • (form_Aufsatzstueck):
