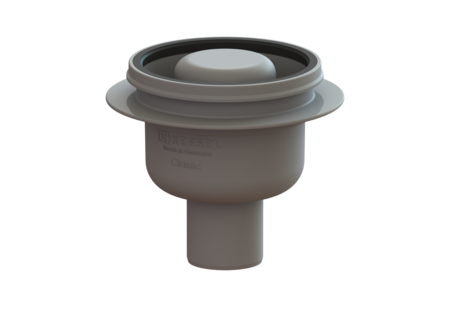

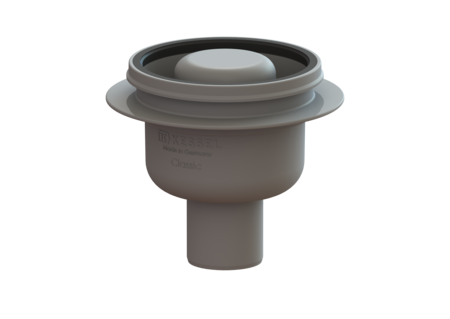

Drain body Classic bathr. drain

Sys 100, DN 50, Vert. outlet, OT 50 mm

40250
PDF product data sheet

KESSEL Drain body Classic bathr. drain, length 156 mm, nominal size (DN) 50, socket vertical, design cover, Sealing water height 50 mm

  • Odour trap height: 50 mm
  • Lip seal fixed to the drain body
  • System 100 - Modular system
Item no. 40250
GTIN 4026092028704
Price group 10

Drain body Classic bathr. drain Sys 100, DN 50, Vert. outlet, OT 50 mm
The drain body for Classic floor/bathroom drains is made of polymer and is equipped with a secure, reliably installed seal. Variant System: 100 Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 0,8 General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Dimensions Net weight: 0,2 kg Gross weight: 0,26 kg Length: 156 mm Width: 156 mm Height: 135 mm Packaging dimension: length: 165 mm Packaging dimension: width: 165 mm Packaging dimension: height: 140 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: vertical
  Title Item no.
27165 Upper section System 100, Slotted cover, 304 SST, K 3 27165 Show
27176 Upper section System 100, Slotted cover, anti-slip 27176 Show
27192 Upper section System 100, Slotted cover, white, K 3 27192 Show
27201 Upper section Sys100, Kessel des cover, 304SST, L15 27201 Show
27202 Upper section Sys 100, Oval des cover, 304 SST, L 15 27202 Show
27210 Upper section System 100, tileable, Polymer, K 3 27210 Show
27211 Upper section System 100, tileable, 304 SST, K 3 27211 Show
47901 Variofix upper section System 100, Slotted cover, 304 SST, K 3 47901 Show
47902 Variofix upper section System 100, Slotted cover, 304 SST, L 15 47902 Show
47904 Variofix upper section Sys100, Kessel des cover, 304 SST, L 15 47904 Show
47905 Variofix upper section Sys100, Oval ded cover, 304 SST, L 15 47905 Show
47906 Variofix upper section System 100, tileable, 304 SST, K 3 47906 Show
  Title Item no.
  Title Item no.
27118 Adapter DN 50/40 27118 Show
27126 Adapter DN 50/70 27126 Show
27146 Extension section System 100, H: 161 mm 27146 Show
27168 Sludge bucket d: 110 mm 27168 Show
27198 Extension section System 100, with pressure sealing flange 27198 Show
27199 Extension section System 100, with glued flange 27199 Show
43500 Odour trap Multistop, System 100 43500 Show
43700 Hair filter Polymer, for System 100 bathroom drains 43700 Show
47900 Intermediate section with system 100 glued flange 47900 Show
  Title Item no.
47200 Odour trap Sealing water height 50 mm 47200 Show
CAD Data
Test Reports and Certificates
  • Nominal size (DN) (nennweite): 50
  • Material of drain body (material_grundkoerper): ABS
  • TÜV test mark (pruefzeichen): ID 1111244461
  • Socket version (stutzen_ausfuehrung): vertical
  • (abdeckungsart):
  • (abdichtung_am_Grundkoerper):
  • (form_Aufsatzstueck):
