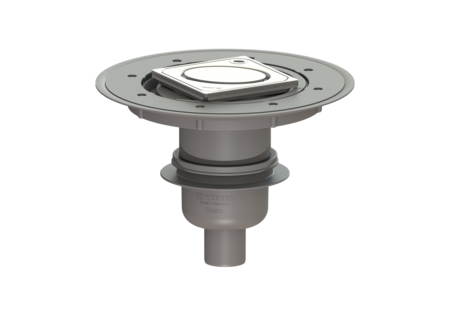

Variofix Classic bathroom drain
DN 50, vert., Design grating Oval, L 15
KESSEL Variofix Classic bathroom drain, length 312 mm, nominal size (DN) 50, outside diameter (OD) 50 mm, type of cover Design cover, cover width 120 mm, frame material Stainless steel 14301, socket vertical, Sealing water height 50 mm
- Odour trap height: 50 mm
- Lip seal fixed on the drain body
- Side adjustable cover
| Item no. | 40250.54 |
|---|---|
| GTIN | 4026092033999 |
| Price group | 10 |
Variofix Classic bathroom drain DN 50, vert., Design grating Oval, L 15
The Classic bathroom drain is suitable for indoor floor drainage. The drain made of ABS is equipped with a telescopic, height-adjustable upper section made of polymer, a removable odour trap as well as a secure, reliably installed seal. Including upper section for combined waterproofing for alternative WP layer. Variant Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 0,8 General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Dimensions Vertical adjustment: 45 - 110 mm Net weight: 1,78 kg Gross weight: 2,07 kg Cutout dimension, width: 180 mm Cutout dimension, length: 220 mm Type of height adjustability: vertically adjustable upper section Length: 312 mm Width: 312 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 450 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: vertical Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Length of cover: 120 mm Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Oval Rim width: 132 mm Rim length: 132 mm Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Adapter DN 50/40 | 27118 | Show |
 | Adapter DN 50/70 | 27126 | Show |
 | Extension section System 100, H: 161 mm | 27146 | Show |
 | Sludge bucket d: 110 mm | 27168 | Show |
 | Extension section System 100, with pressure sealing flange | 27198 | Show |
 | Extension section System 100, with glued flange | 27199 | Show |
 | Odour trap Multistop, System 100 | 43500 | Show |
 | Hair filter Polymer, for System 100 bathroom drains | 43700 | Show |
 | Intermediate section with system 100 glued flange | 47900 | Show |
 | Installation adhesive 2C installation mortar | 48650 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Odour trap Sealing water height 50 mm | 47200 | Show |
 | Design cover Oval, Lock & Lift | 680225 | Show |
 | Design cover KESSEL, Lock & Lift | 680226 | Show |
 | Design cover Cross, Lock & Lift | 680235 | Show |
 | Design cover Parade, Lock & Lift | 680236 | Show |
 | Design cover Festival, Lock & Lift | 680237 | Show |
 | Design cover Spot, Lock & Lift | 680238 | Show |
 | Design cover Slot, Lock & Lift | 680239 | Show |
 | Design cover Sticks, Lock & Lift | 680240 | Show |
 | Release key for Lock & Lift | 680702 | Show |
| CAD Data |
|---|
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper):
ABS
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
- Socket version (stutzen_ausfuehrung):
vertical
- Type of cover (abdeckungsart): Design cover
- (abdichtung_am_Grundkoerper):
- (form_Aufsatzstueck):
