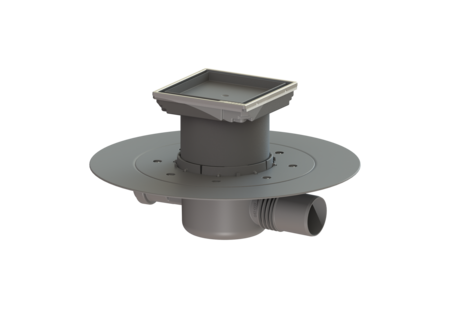

The Superflat bathroom drain
glued flange, DN 50, tileable
KESSEL The Superflat bathroom drain, length 332 mm, type of cover tileable cover plate, design cover
- Movable outlet socket
- Lip seal fixed on the drain body
- Side inlet via odour trap
| Item no. | 42701.95 |
|---|---|
| GTIN | 4026092029664 |
| Price group | 10 |
The Superflat bathroom drain glued flange, DN 50, tileable
The Superflat bathroom drain is suitable for indoor floor drainage. The drain made of PP is equipped with a secure, reliably installed seal as well as a removable odour trap. Variant Sealing water height: 30 mm Discharge rate (l/s) with 20 mm threshold: 0,8 General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Dimensions Vertical adjustment: 25 - 90 mm Net weight: 0,93 kg Gross weight: 1,17 kg Cutout dimension, width: 350 mm Cutout dimension, length: 350 mm Type of height adjustability: vertically adjustable upper section Length: 332 mm Width: 332 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Tank/drain body Number of outlets: 1 Inlet nominal size (DN): 40 mm Number of inlets: 1 Material of drain body: PP Coverage features Type of cover: tileable cover plate Cover material: tileable Colour of cover: selectable Width of cover: 110 mm Length of cover: 110 mm Frame material: Stainless steel 14301 Locking: placed Load class: K 3 (EN 1253-1) Rim width: 110 mm Rim length: 110 mm Upper section material: PP
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Adapter DN 50/40 | 27118 | Show |
 | Adapter DN 50/70 | 27126 | Show |
 | Extension section System 100, H: 161 mm | 27146 | Show |
 | Sludge bucket d: 110 mm | 27168 | Show |
 | Extension section System 100, with pressure sealing flange | 27198 | Show |
 | Extension section System 100, with glued flange | 27199 | Show |
 | Odour trap Multistop, System 100 | 43500 | Show |
 | Hair filter Polymer, for System 100 bathroom drains | 43700 | Show |
 | Membrane 500 x 500 mm | 43710 | Show |
 | Membrane EPDM, 500 x 500 mm | 43730 | Show |
 | Intermediate section with system 100 glued flange | 47900 | Show |
| CAD Data |
|---|
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper):
PP
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
PP
- Type of cover (abdeckungsart): tileable cover plate
