Roof drain

Double press fl., DN 100, with leaf trap

45970
PDF product data sheet

KESSEL Roof drain, without, nominal size (DN) 100, volume 66,7 dm³, type of cover Leaf trap, type of waterproofing double pressure sealing flange, Cover Polymer

Item no. 45970
GTIN 4026092029718
Price group 10

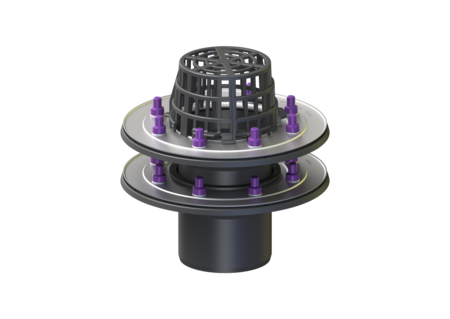

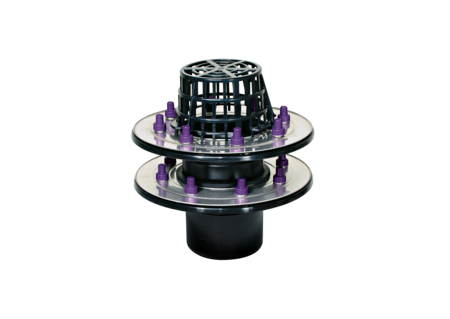

    Roof drain Double press fl., DN 100, with leaf trap
    The roof drain for flat roof surfaces is used for point drainage and is equipped with a pressure sealing flange as well as a gravel trap. The recyclable composite material Ecoguss fulfils the highest sound protection requirements, is resistant to aggressive media, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. Note: Please consult the KESSEL Service Centre for trapezoidal roof areas greater than 2500 sqm. Variant System: 100 Heating: without Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) General characteristics Nominal size (DN): 100 Outer diameter (OD): 110 mm Dimensions Vertical adjustment: 40 - 80 mm Net weight: 2,34 kg Gross weight: 3,1 kg Diameter: 246 mm Cutout dimension, width: 180 mm Cutout dimension, length: 180 mm Type of height adjustability: vertically adjustable upper section Length: 246 mm Width: 246 mm Packaging dimension: length: 490 mm Packaging dimension: width: 275 mm Packaging dimension: height: 495 mm Tank/drain body Material of drain body: PP Coverage features Type of cover: Leaf trap Cover material: Polymer Colour of cover: black Width of cover: 120 mm Height of cover: 80 mm Length of cover: 120 mm Upper section material: PP
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Polymer
    • Upper section material (material_aufsatzstueck): PP
    • (abdichtung_aufsatzstueck):
