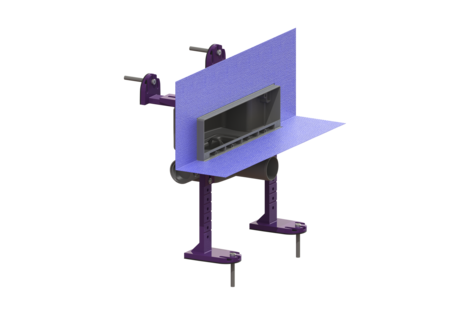

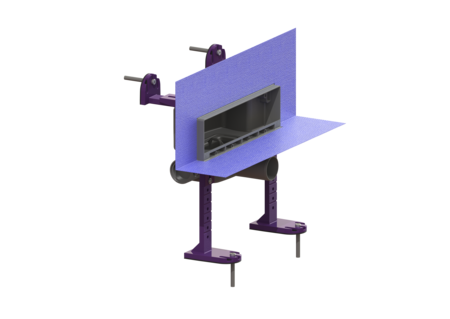

Drain body, Scada wall drain

DN 50, with fixed waterproofing membrane

48000M
PDF product data sheet

KESSEL Drain body, Scada wall drain, without, nominal size (DN) 50, type of waterproofing Waterproofing layer, drainage by Wall drain, design cover

  • Award-winning design
  • Flexible & convenient installation options
  • Alternative odour trap Multistop
Item no. 48000M
GTIN 4026092079096
Price group 10

    Drain body, Scada wall drain DN 50, with fixed waterproofing membrane
    Used in combination with Scada drain covers, the drain body for Scada wall drains is suitable for indoor wall/floor drainage, is equipped with an odour trap and provides connection options at the front, left and right-hand side. Variant System: 125 Heating: without Lighting: without Waterproofing layer on the drain body: Factory-fitted sealing collar (WaD) according to DIN 18534 Sealing water height: 22 mm Discharge rate (l/s) with 20 mm threshold: 0,5 General characteristics Nominal size (DN): 50 Outer diameter (OD): 58 mm Odour trap: included Dimensions Net weight: 1,21 kg Gross weight: 1,94 kg Length: 362 mm Width: 195 mm Height: 353 mm Packaging dimension: length: 400 mm Packaging dimension: width: 300 mm Packaging dimension: height: 270 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: lateral Coverage features Frame material: ABS Upper section material: ABS
      Title Item no.
    48012 Drain cover, Scada wall drain Grade 304 SS, flooring height max. 10 mm 48012 Show
    48013 Drain cover, Scada wall drain Wave, grade 304 SS, 10 mm tiling 48013 Show
    48014 Drain cover, Scada wall drain Grade 304 SS, flooring height max. 17 mm 48014 Show
      Title Item no.
      Title Item no.
    48063 Dry-walling board for stud wall, Scada wall drain 48063 Show
    48400 Odour trap Multistop, for Linearis Compact & Scada 48400 Show
    48800 Hair filter Polymer, for shower channels 48800 Show
      Title Item no.
    48603 Odour trap Linearis, sealing water height 22 mm 48603 Show
    Manuals
    Test Reports and Certificates
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Frame material (rahmen_material): ABS
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): lateral
    • Length (laenge): 362  mm
    • Width (breite): 195  mm
    • Lighting (beleuchtung): without
