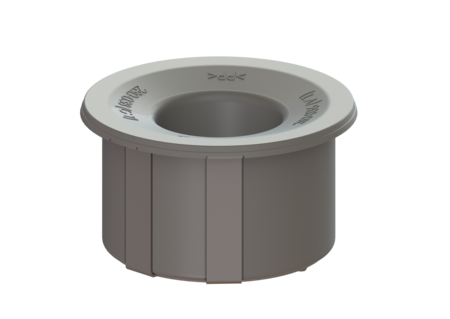

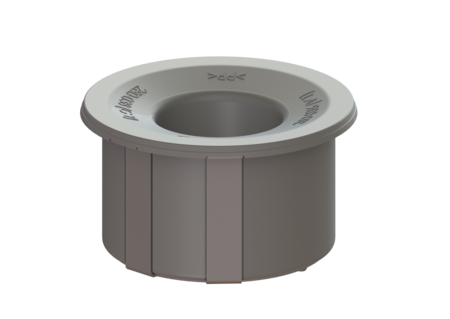

Fire protection insert
Fire-Kit 100, for DN 50, 70, 80
Fire-Kit 100 fire protection insert for fire resistance class F120, F90, F60 and F 30 to DIN 4102-11. Can be retrofitted to all vertical floor drains, System 100/125: Practicus made of PP DN 50, DN 70 Ecoguss DN 50, DN 70, DN 80 Ferrofix made of stainless steel DN 70
| Item no. | 48099 |
|---|---|
| GTIN | 4026092056257 |
| Price group | 10 |
Fire protection insert Fire-Kit 100, for DN 50, 70, 80
Fire-Kit 100 fire protection insert for fire resistance class F120, F90, F60 and F 30 to DIN 4102-11. Can be retrofitted to all vertical floor drains, System 100/125: Practicus made of PP DN 50, DN 70 Ecoguss DN 50, DN 70, DN 80 Ferrofix made of stainless steel DN 70 Variant System: 125 General characteristics Approval: Z-19.53-2414,Z-19.17-1719 Dimensions Net weight: 0,16 kg Gross weight: 0,17 kg Diameter: 79 mm Height: 45 mm Packaging dimension: length: 150 mm Packaging dimension: width: 106 mm Packaging dimension: height: 40 mm Wastewater contents Fire resistance class in accordance with DIN-4102: F 120
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Approval |
