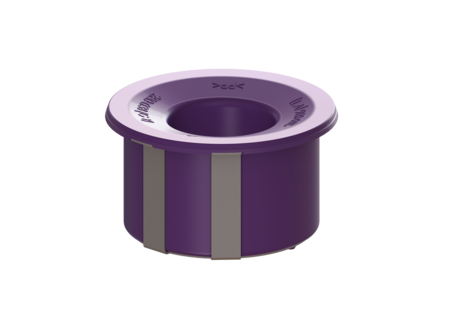

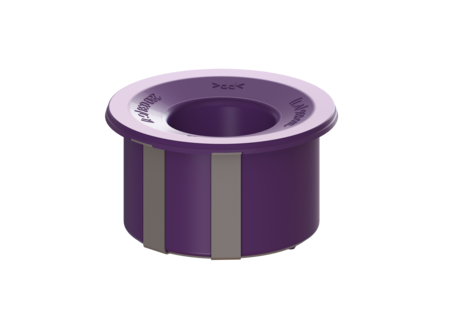

Fire protection insert
Fire-Kit 100, for DN 100
Fire-Kit 100 fire protection insert for fire resistance class F120, F90, F60 and F 30 to DIN 4102-11. Can be retrofitted to all vertical floor drains, System 100/125: Practicus made of PP DN 100 Ecoguss DN 100 Ferrofix made of stainless steel DN 100
| Item no. | 48100 |
|---|---|
| GTIN | 4026092011454 |
| Price group | 10 |
Fire protection insert Fire-Kit 100, for DN 100
Fire-Kit 100 fire protection insert for fire resistance class F120, F90, F60 and F 30 to DIN 4102-11. Can be retrofitted to all vertical floor drains, System 100/125: Practicus made of PP DN 100 Ecoguss DN 100 Ferrofix made of stainless steel DN 100 Variant System: 125 General characteristics Approval: Z-19.53-2414,Z-19.17-1719 Dimensions Net weight: 0,16 kg Gross weight: 0,16 kg Diameter: 79 mm Height: 45 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Wastewater contents Fire resistance class in accordance with DIN-4102: F 120
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Approval |
