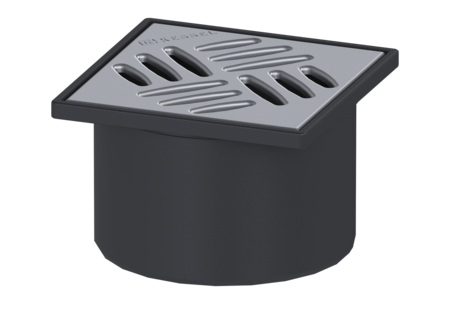

Upper section
Slot cover, 304 SST, 130 x 130 mm, K3
KESSEL Upper section, volume 1,91 dm³, length 130 mm, width 130 mm, type of cover Slotted cover, locking, design cover, Cover Stainless steel 14301
- Multiple combinations with suitable drain bodies
| Item no. | 48165 |
|---|---|
| GTIN | 4026092034224 |
| Price group | 10 |
Upper section Slot cover, 304 SST, 130 x 130 mm, K3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Dimensions Net weight: 0,27 kg Gross weight: 0,3 kg Height: 85 mm Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 85 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 9 mm Surface: Polished SST Frame material: ABS Load class: K 3 (EN 1253-1) Rim width: 130 mm Rim length: 130 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data | |
|---|---|
| Test Reports and Certificates |
- Cover material (abdeckung_material):
Stainless steel 14301
- TÜV test mark (pruefzeichen):
ID 1111243495
- Frame material (rahmen_material):
ABS
- Upper section material (material_aufsatzstueck):
ABS
