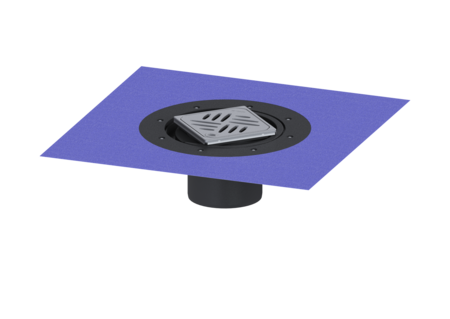

Variofix upper section
Kessel des cover, 316SST, Lock&Lift, L15
KESSEL Variofix upper section, System 125, surface, length 132 mm, width 132 mm, type of cover Design cover, locking Lock & Lift, design cover Kessel, Cover 316 stainless steel
- Different covers selectable
- Including waterproofing membrane
| Item no. | 48204 |
|---|---|
| GTIN | 4026092066522 |
| Price group | 10 |
Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Seal: Lip seal Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Dimensions Vertical adjustment: 10 - 23 mm Net weight: 1,5 kg Gross weight: 1,77 kg Diameter: 312 mm Type of height adjustability: vertically adjustable upper section Height: 120 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Coverage features Type of cover: Design cover Cover material: 316 stainless steel Colour of cover: silver Frame material: 316 stainless steel Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Cover material (abdeckung_material):
316 stainless steel
- Frame material (rahmen_material):
316 stainless steel
- Upper section material (material_aufsatzstueck):
ABS
