Upper section

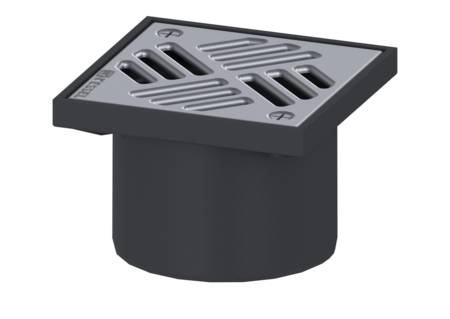

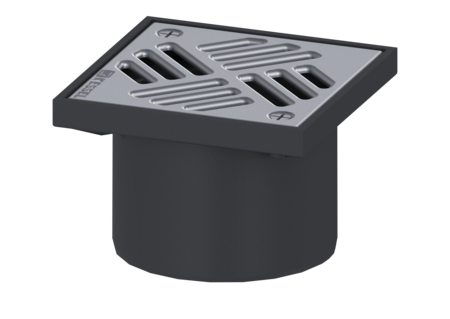

Slot cover, 316 SST, 150 x 150 mm, K3

48209
48209
PDF product data sheet

KESSEL Upper section, volume 5,94 dm³, length 150 mm, width 150 mm, type of cover Slotted cover, locking screwed, design cover, Cover 316 stainless steel

  • Multiple combinations with suitable drain bodies
Item no. 48209
GTIN 4026092066577
Price group 10

    Upper section Slot cover, 316 SST, 150 x 150 mm, K3
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Dimensions Net weight: 0,46 kg Gross weight: 0,56 kg Height: 100 mm Packaging dimension: length: 220 mm Packaging dimension: width: 200 mm Packaging dimension: height: 135 mm Coverage features Type of cover: Slotted cover Cover material: 316 stainless steel Colour of cover: silver Height of cover: 16 mm Frame material: ABS Locking: screwed Load class: K 3 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): 316 stainless steel
    • Frame material (rahmen_material): ABS
    • Upper section material (material_aufsatzstueck): ABS
