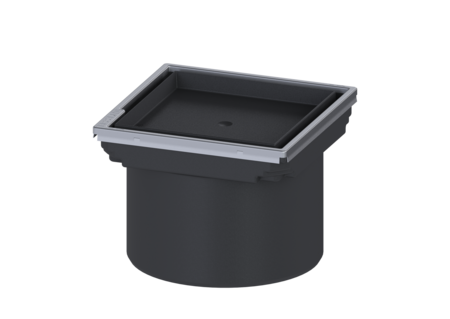

Upper section
tileable, 304 SST, K 3
KESSEL Upper section, volume 1,77 dm³, length 132 mm, width 132 mm, type of cover tileable cover plate, locking, design cover, Cover tileable
- Multiple combinations with suitable drain bodies
| Item no. | 48211 |
|---|---|
| GTIN | 4026092029749 |
| Price group | 10 |
Upper section tileable, 304 SST, K 3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Dimensions Net weight: 0,27 kg Gross weight: 0,3 kg Height: 100 mm Packaging dimension: length: 133 mm Packaging dimension: width: 133 mm Packaging dimension: height: 100 mm Coverage features Type of cover: tileable cover plate Cover material: tileable Colour of cover: selectable Height of cover: 25 mm Frame material: Stainless steel 14301 Load class: K 3 (EN 1253-1) Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates |
- TÜV test mark (pruefzeichen):
ID 1111243495
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
