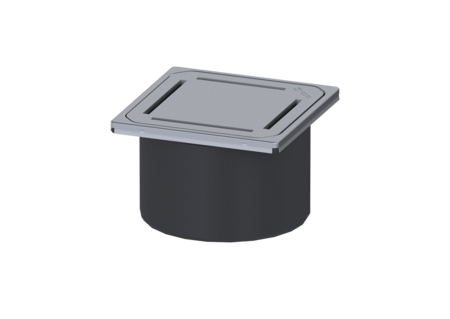

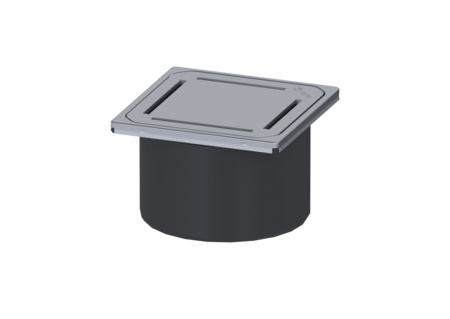

Upper section
Slot design cover, 304 SST, K 3
KESSEL Upper section, volume 5,7 dm³, length 132 mm, width 132 mm, type of cover Design cover, locking placed, design cover Slot, Cover Stainless steel 14301
- Multiple combinations with suitable drain bodies
| Item no. | 48218 |
|---|---|
| GTIN | 4026092042601 |
| Price group | 10 |
Upper section Slot design cover, 304 SST, K 3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Dimensions Net weight: 0,6 kg Gross weight: 0,8 kg Height: 90 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 16 mm Surface: ground Frame material: Stainless steel 14301 Locking: placed Load class: K 3 (EN 1253-1) Grating design: Slot Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
