Upper section

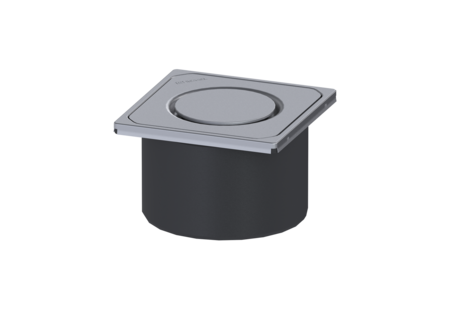

Spot design cover, 304 SST, K 3

48220
48220
PDF product data sheet

KESSEL Upper section, volume 6,29 dm³, length 132 mm, width 132 mm, type of cover Design cover, locking placed, design cover Spot, Cover Stainless steel 14301

  • Multiple combinations with suitable drain bodies
Item no. 48220
GTIN 4026092042625
Price group 10

    Upper section Spot design cover, 304 SST, K 3
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Dimensions Net weight: 0,66 kg Gross weight: 0,86 kg Height: 90 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 16 mm Frame material: Stainless steel 14301 Locking: placed Load class: K 3 (EN 1253-1) Grating design: Spot Rim width: 132 mm Rim length: 132 mm Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
