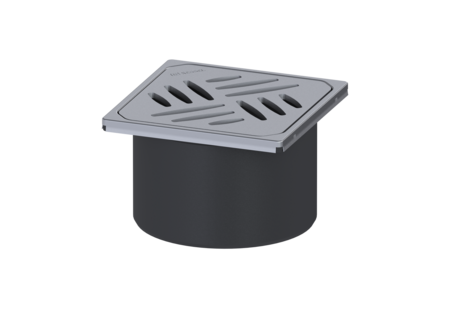

Upper section
Kessel design cover, 304 SST, L 15
KESSEL Upper section, volume 4,9 dm³, type of cover Design cover, locking unlocked, design cover Kessel, Cover Stainless steel 14301
- Multiple combinations with suitable drain bodies
| Item no. | 48225 |
|---|---|
| GTIN | 4026092042694 |
| Price group | 10 |
Upper section Kessel design cover, 304 SST, L 15
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Dimensions Net weight: 0,5 kg Gross weight: 0,6 kg Length: 132 mm Width: 132 mm Height: 90 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 9 mm Length of cover: 120 mm Locking: unlocked Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data | |
|---|---|
| Test Reports and Certificates |
- Cover material (abdeckung_material):
Stainless steel 14301
- TÜV test mark (pruefzeichen):
ID 1111243495
- Upper section material (material_aufsatzstueck):
ABS
