Upper section

Oval design cover, 316 SST, L 15

48228
48228
PDF product data sheet

KESSEL Upper section, volume 4,9 dm³, length 132 mm, width 132 mm, type of cover Design cover, locking placed, design cover Oval, Cover 316 stainless steel

  • Multiple combinations with suitable drain bodies
Item no. 48228
GTIN 4026092077887
Price group 10

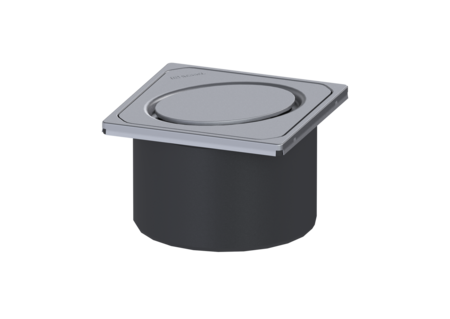

    Upper section Oval design cover, 316 SST, L 15
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Dimensions Net weight: 0,74 kg Gross weight: 0,74 kg Height: 90 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Design cover Cover material: 316 stainless steel Colour of cover: silver Height of cover: 16 mm Surface: ground Frame material: 316 stainless steel Locking: placed Load class: L 15 (EN 1253-1) Grating design: Oval Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): 316 stainless steel
    • Frame material (rahmen_material): 316 stainless steel
    • Upper section material (material_aufsatzstueck): ABS
