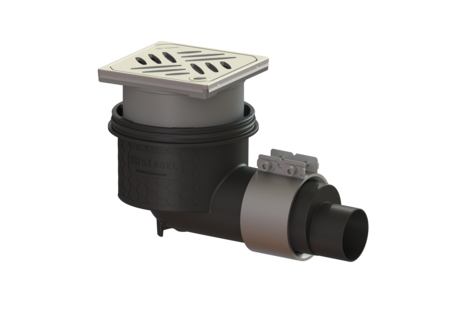

Ecoguss project drain

DN 50, horizontal, Design cover

48358.63
48358.63
PDF product data sheet

KESSEL Ecoguss project drain, nominal size (DN) 50, socket lateral, type of cover Design cover, odour trap included, vertically adjustable, flooring height max. 16 mm, locking Lock & Lift

  • High-tech Ecoguss composite material
  • Highest fire protection standards
  • Scientifically confirmed sound protection effect
Item no. 48358.63
GTIN 4026092053041
Price group 40

    Ecoguss project drain DN 50, horizontal, Design cover
    The Ecoguss project drain with connection flange is used for point drainage and is equipped with a removable odour trap as well as a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 58 mm Odour trap: included Dimensions Net weight: 1,69 kg Gross weight: 2,13 kg Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss Socket version: lateral Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 16 mm Length of cover: 120 mm Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Max. flooring height: 16 mm Upper section: vertically adjustable Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    48403 Extension section H: 140 mm, with glued flange 48403 Show
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
    48900 Extension section H: 120 mm, with glued flange 48900 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
      Title Item no.
    27169 Odour trap for Practicus, Ecoguss, Ferrofix 27169 Show
    48201 Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Show
    48358 Ecoguss drain body DN 50, Horizontal outlet 48358 Show
    680225 Design cover Oval, Lock & Lift 680225 Show
    680226 Design cover KESSEL, Lock & Lift 680226 Show
    680235 Design cover Cross, Lock & Lift 680235 Show
    680236 Design cover Parade, Lock & Lift 680236 Show
    680237 Design cover Festival, Lock & Lift 680237 Show
    680238 Design cover Spot, Lock & Lift 680238 Show
    680239 Design cover Slot, Lock & Lift 680239 Show
    680240 Design cover Sticks, Lock & Lift 680240 Show
    680702 Release key for Lock & Lift 680702 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): Ecoguss
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
