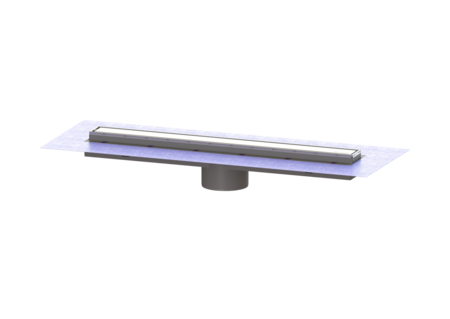

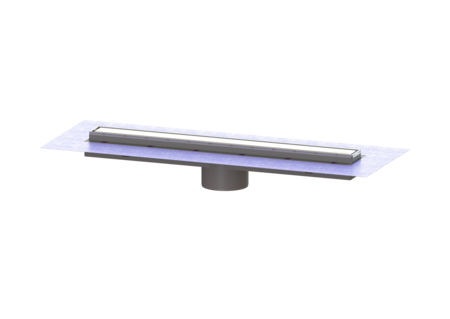

Linearis Comfort upper section

L: 750 mm, System 125, WaD, K 3

48928M
PDF product data sheet

KESSEL Linearis Comfort upper section, length 750 mm, nominal size (DN) 125, surface, odour trap included, waterproofing layer upper section by Factory-fitted sealing collar (WaD) according to DIN 18534

  • Individual design with reversible stainless steel insert
  • Highest fire protection standards
  • Low installation depth
Item no. 48928M
GTIN 4026092079041
Price group 10

    Linearis Comfort upper section L: 750 mm, System 125, WaD, K 3

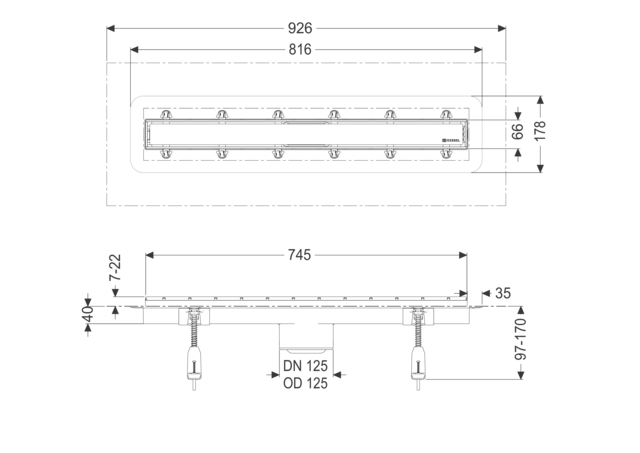

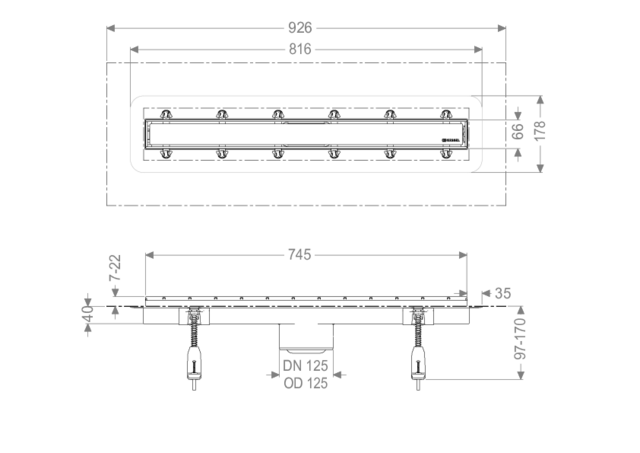

    Used in combination with a drain body of the KESSEL 125 modular system, the Linearis Comfort upper section is suitable for use as indoor linear drainage. Variant System: 125 Seepage opening: open Waterproofing layer on the upper section: Factory-fitted sealing collar (WaD) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 50 mm Discharge rate (l/s) with 10 mm threshold: 1,1 Discharge rate (l/s) without threshold: 1 mm General characteristics Nominal size (DN): 125 Outer diameter (OD): 125 mm ATEX: no Odour trap: included Dimensions Net weight: 3,44 kg Gross weight: 4,1 kg Outer dimension, length: 815 mm Installation depth: 80 - 140 mm Width: 243 mm Height: 110 mm Packaging dimension: length: 1280 mm Packaging dimension: width: 260 mm Packaging dimension: height: 130 mm Coverage features Type of cover: Stainless steel cover Cover material: Stainless steel 14301 Colour of cover: silver Frame material: Stainless steel 14301 Locking: lockable Load class: K 3 (EN 1253-1) Grating design: optionally tileable Rim width: 66 mm Rim length: 750 mm Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    48400 Odour trap Multistop, for Linearis Compact & Scada 48400 Show
    48630 Sound insulation element for Linearis Compact installation supp. 48630 Show
    48640 Installation aid for Linearis Comfort 48640 Show
    48800 Hair filter Polymer, for shower channels 48800 Show
      Title Item no.
    48602 Odour trap Linearis Comf.,sealing water height 50mm 48602 Show
    • Nominal size (DN) (nennweite): 125
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • (auslauf_nennweite_dn):
    • Outer dimension, length (aussenmass_laenge): 815  mm
