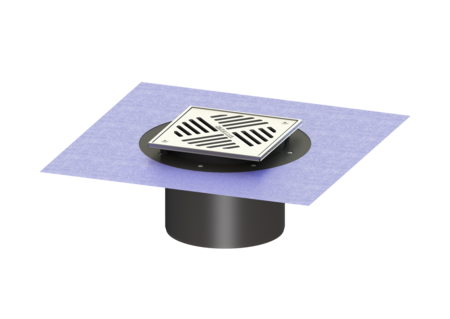

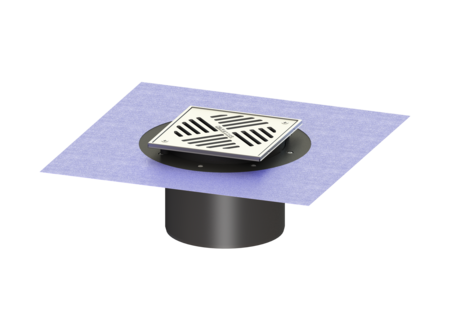

Variofix upper section

System 200, slotted cover, 304 SST, K 3

48968
PDF product data sheet

The Variofix upper section is suitable for combination with project and bathroom drains and can be adjusted in height and at the side to the flooring, including temporary protective cover.

Item no. 48968
GTIN 4026092004906
Price group 10

    Variofix upper section System 200, slotted cover, 304 SST, K 3
    The Variofix upper section is suitable for combination with project and bathroom drains and can be adjusted in height and at the side to the flooring, including temporary protective cover. Variant System: 200 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Dimensions Net weight: 2,25 kg Gross weight: 2,75 kg Diameter: 320 mm Adjustment range: 12 - 25 Height: 150 mm Packaging dimension: length: 360 mm Packaging dimension: width: 360 mm Packaging dimension: height: 250 mm Coverage features Cover material: Stainless steel 14301 Width of cover: 198 mm Length of cover: 198 mm Load class: K 3 (EN 1253-1) Grid size, length: 200 mm Grid size, width: 200 mm Max. flooring height: 23 mm Upper section: adjustable in three dimensions Cover Grid size, length: 200 mm Grid size, width: 200 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    27643 Slotted cover 187 x 187 mm, stainless steel, class K 3 27643 Show
    • Cover material (abdeckung_material): Stainless steel 14301
