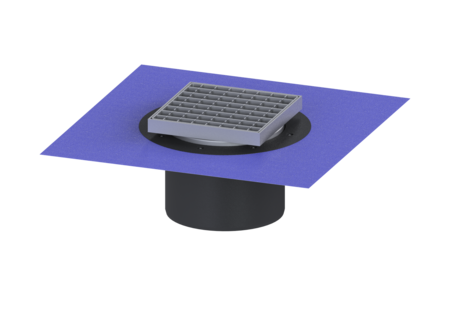

Variofix upper section
System 200, slot grat., 304 SST, L 15
KESSEL Variofix upper section, System 200, surface pickled, length 200 mm, width 200 mm, type of cover Slotted cover, locking placed, design cover Cross, Cover Stainless steel 14301
- Different covers selectable
- Including waterproofing membrane
| Item no. | 48969 |
|---|---|
| GTIN | 4026092005132 |
| Price group | 70 |
Variofix upper section System 200, slot grat., 304 SST, L 15
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 200 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Dimensions Vertical adjustment: 30 - 50 mm Net weight: 2,99 kg Gross weight: 3,72 kg Diameter: 320 mm Type of height adjustability: vertically adjustable upper section Height: 150 mm Packaging dimension: length: 586 mm Packaging dimension: width: 386 mm Packaging dimension: height: 400 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 28 mm Surface: pickled Locking: placed Load class: L 15 (EN 1253-1) Grating design: Cross Rim width: 200 mm Rim length: 200 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS Mesh size: 23 x 23 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
