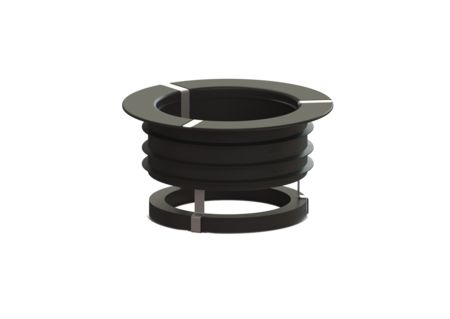

Quick-Fit pipe penetration seal

for core drillholes with fire protection

48990
PDF product data sheet

Quick-Fit penetration seal with fire protection insert for fire resistance class F120, F90, F60 and F30 to DIN 4102-11, for core drillholes. Suitable for Ecoguss and Practicus drain bodies with vertical outlet. Seals the gap between the drain and the ceiling tight to smoke and gas, has a sound-absorbing effect and provides thermal insulation. Quick-Fit: with fire protection insert Core hole dimension: 160 mm +- 2mm

Item no. 48990
GTIN 4026092033708
Price group 10

    Quick-Fit pipe penetration seal for core drillholes with fire protection
    Quick-Fit penetration seal with fire protection insert for fire resistance class F120, F90, F60 and F30 to DIN 4102-11, for core drillholes. Suitable for Ecoguss and Practicus drain bodies with vertical outlet. Seals the gap between the drain and the ceiling tight to smoke and gas, has a sound-absorbing effect and provides thermal insulation. Quick-Fit: with fire protection insert Core hole dimension: 160 mm +- 2mm Variant System: 125 General characteristics Colour: black Material: Polymer Approval: Z-19.53-2414,Z-19.17-1719 Dimensions Net weight: 0,57 kg Gross weight: 0,68 kg Diameter: 166 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Wastewater contents Fire resistance class in accordance with DIN-4102: F 120
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): Polymer
